High output work light for industrial applications.
Utilises the latest, highly efficient LED technology.
Customised arrangement of vacuum-metallised optics delivers ‘zonal’ lighting.
Light output optimised for exceptional levels of illumination in immediate (<20m) working environment.
Colour temperature - 5000 kelvin.
Supplied with stainless steel, side mounting brackets.
Electronic thermal management
‘Unbreakable’ polycarbonate lens
IP68 watertight
2 year warranty (5 year for Automotive/Commercial Fleet applications)
Supplied with male/female 2-pin Deutsch connectors
Designed & manufactured in Britain

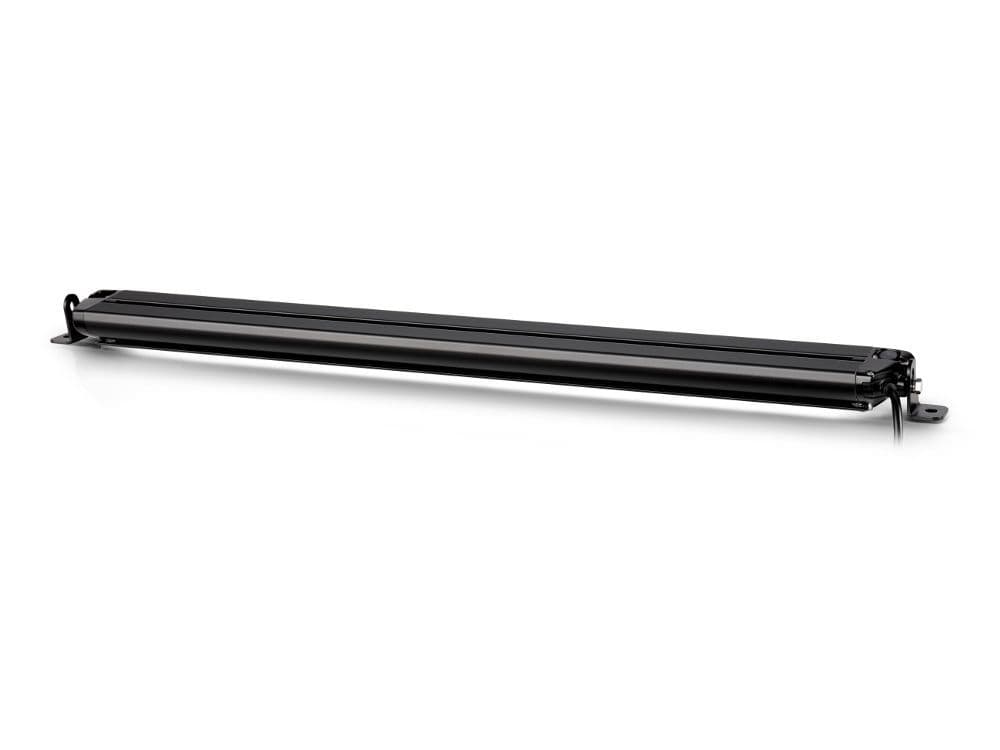

Based on: 1x Linear-24 Flood Work Lamp.
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hours |
| Colour Temperature |
5,000 Kelvin |
| Weight |
1500 gr |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
16200 Lm |
| Total Driver 'FOV' Flux † |
11534 Lm |
| Colour Temperature |
5000K |
| Number of High Output LEDs |
48 |
| Power Consumption |
168 Watts |
| Current Draw (at 14.4V) |
11.7 Amps |
| CERTIFICATION |
|
| Work Lamp |
ECE R10 |
| IP Rating |
IP67 / IP69K |
| Salt Spray Test |
ISO 9227 (250H) |
| EMC Protection |
CISPR-25: 2008 (Class 3) |
| OPERATING CONDITIONS |
|
| Shock |
TBC |
| Vibration (BS EN 60068) |
10Hz-2000Hz, 10gn |
| Operating Temperature |
-40deg C ... +90degC |
| DIMENSIONS |
|
| Width |
682 mm |
| Depth |
62 mm |
| Height |
40 mm |
| PHOTOMETRIC DATA |
|
| 1Lx Line @ |
44m |
| 5Lx Line @ |
33m |
| 20Lx Line @ |
23m |
| 50Lx Line @ |
18m* |
* 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
