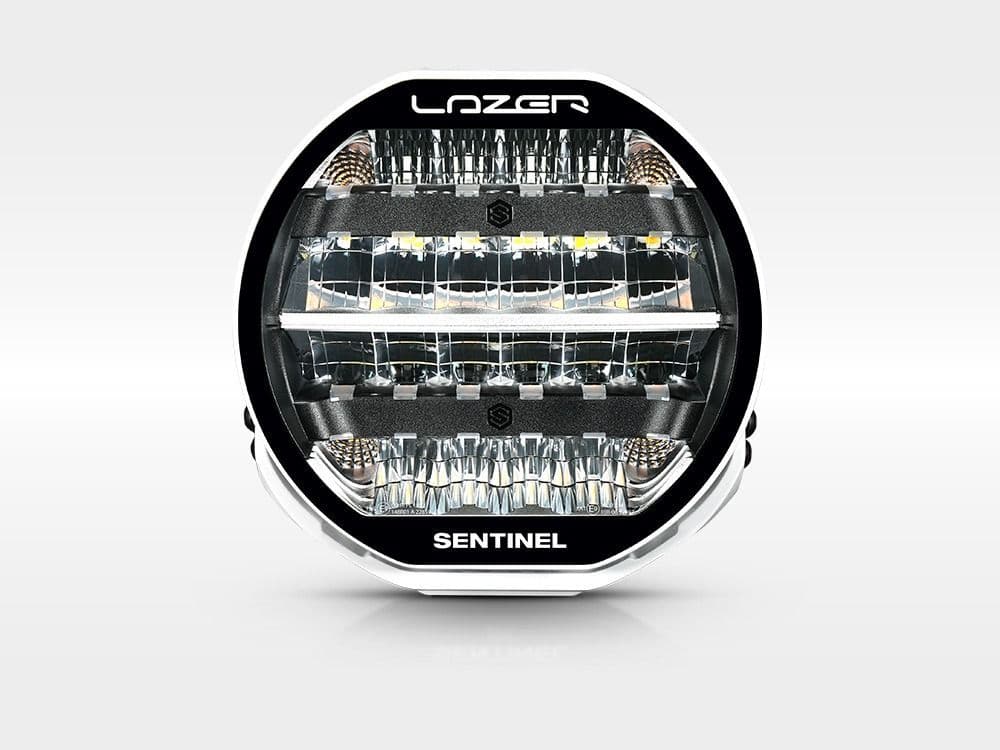

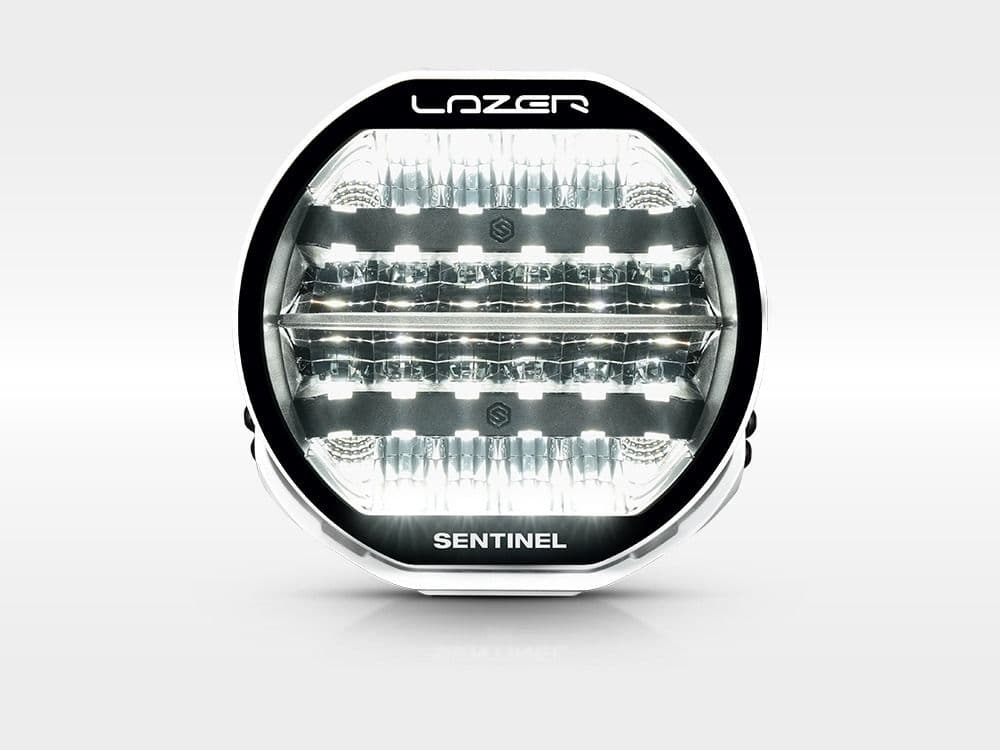

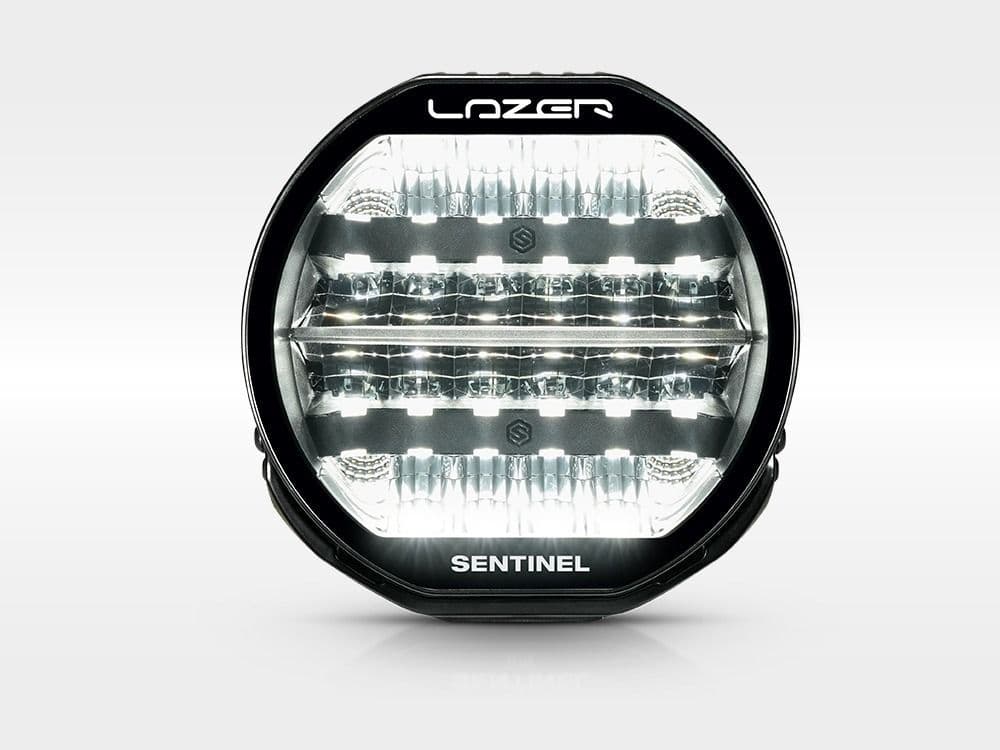

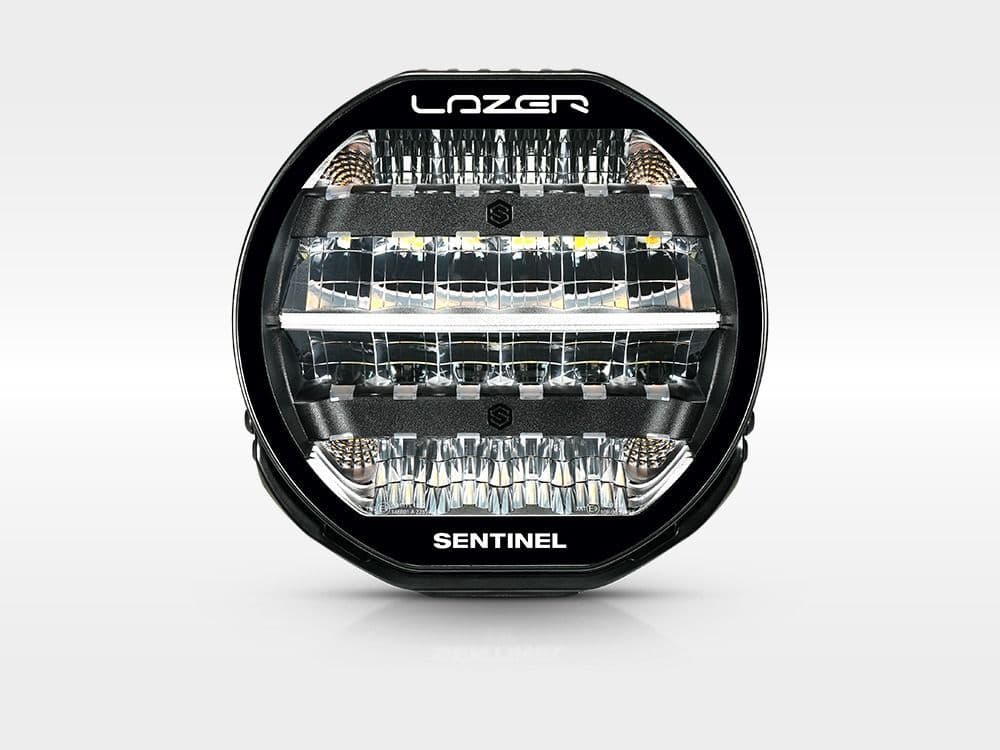

The latest addition to the Sentinel range of 9” round lamps, the Highline 'PL2' product range comprises lamps primarily aimed at the heavy truck sector. Distinctive high-end product design with a sleek black internal appearance, and the combination of 20 high power LEDs delivers exceptional lighting performance optimised for commercial applications. The appeal of the lamps is enhanced courtesy of an updated position light / backlight feature, along with the possibility to activate a dynamic welcome mode, and choice of lamp finish in satin black or gloss white, ensures Sentinel Highline are products that stand out for all the right reasons.

Emitting 17,020 raw lumens, the lamps deliver 1 lux to 583m, with a comfortable 52 degree horizontal spread of light, and 18 degree vertical spread of light, tailored to everyday road use, particularly when mounted higher on a truck cab for example. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.

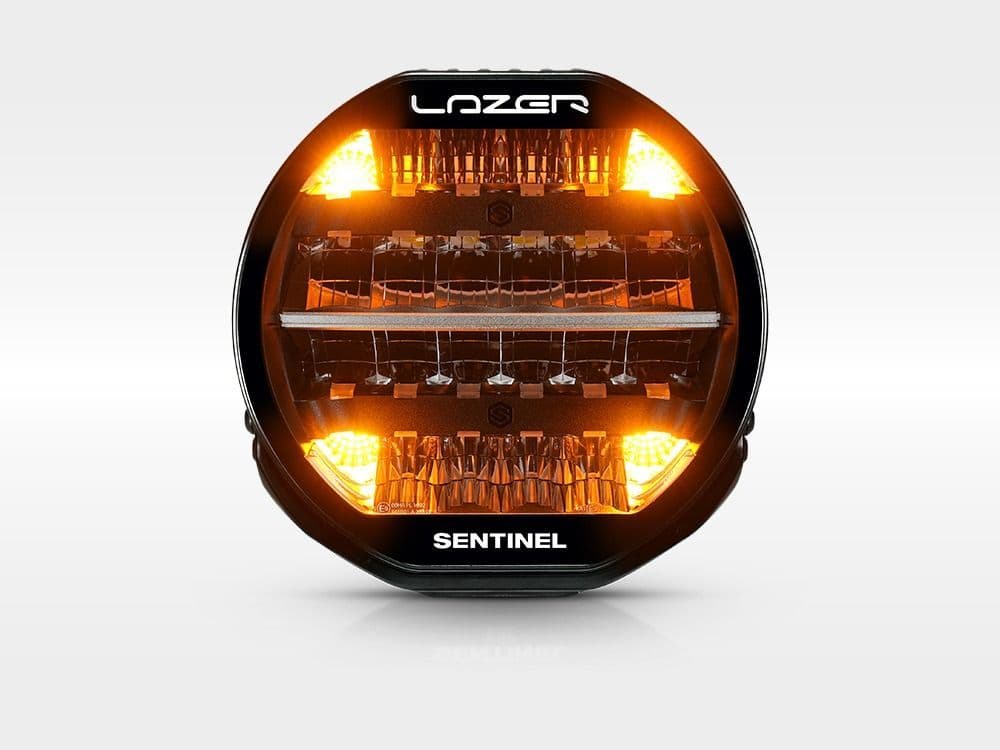

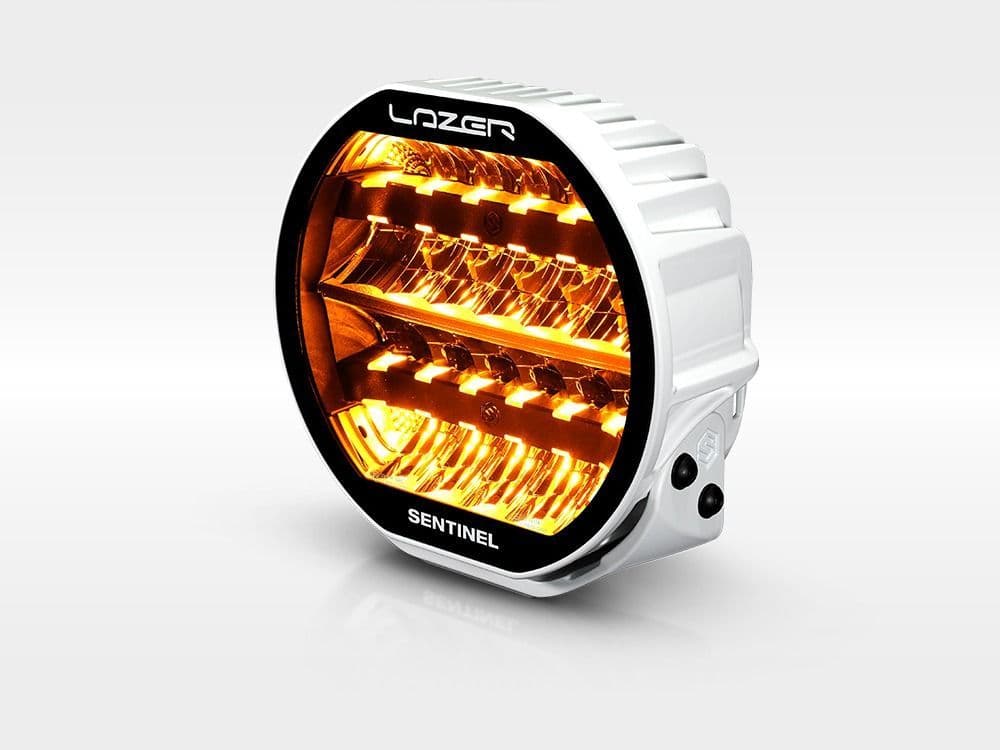

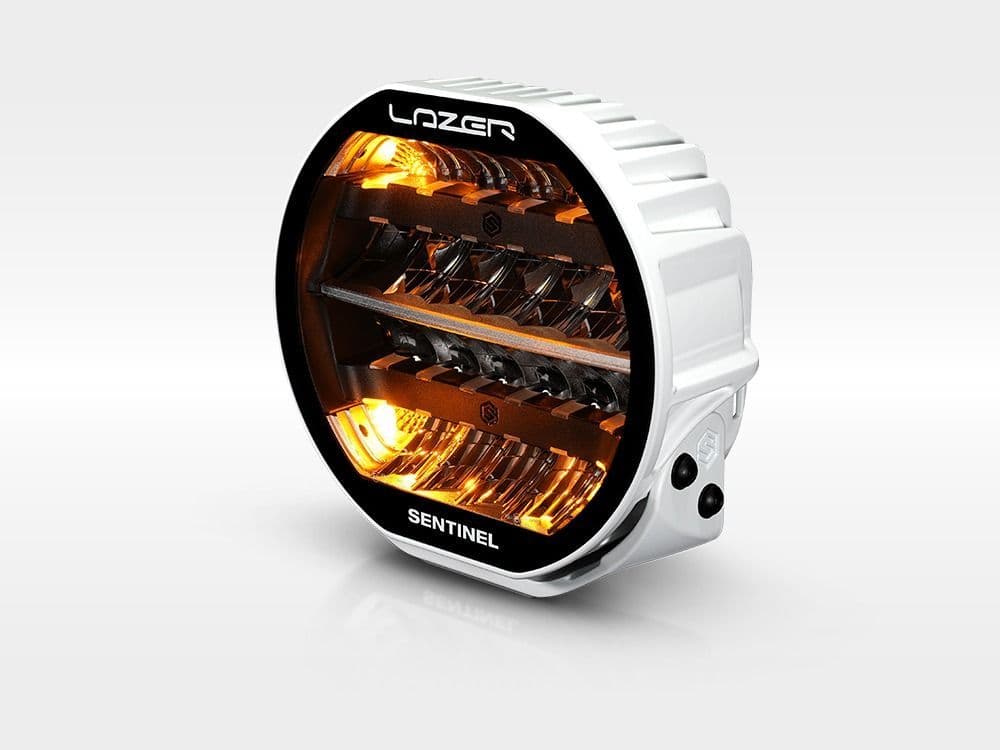

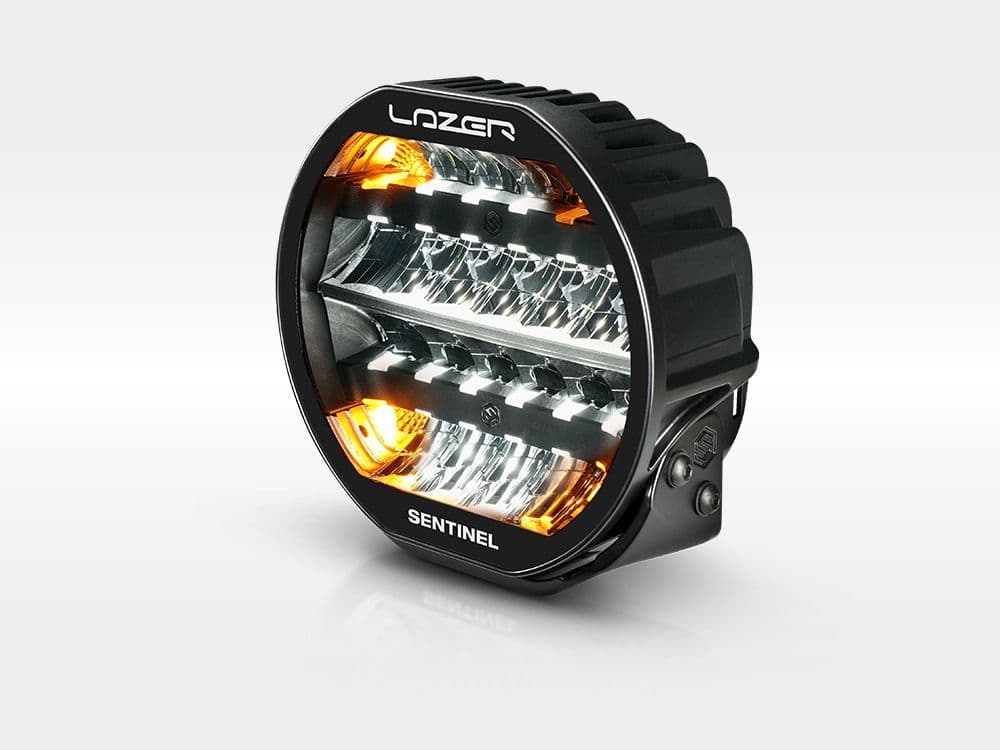

Also available with an integrated Beacon function, the lamp provides a Regulation 65-approved (XA1) narrow-field special warning light by illuminating its corner sections in amber. With two selectable amber warning patterns, the function can be synchronised across multiple lamps during installation or switched on demand via a momentary switch, offering maximum flexibility for different operational requirements.

What's Included:

Technical Specification
