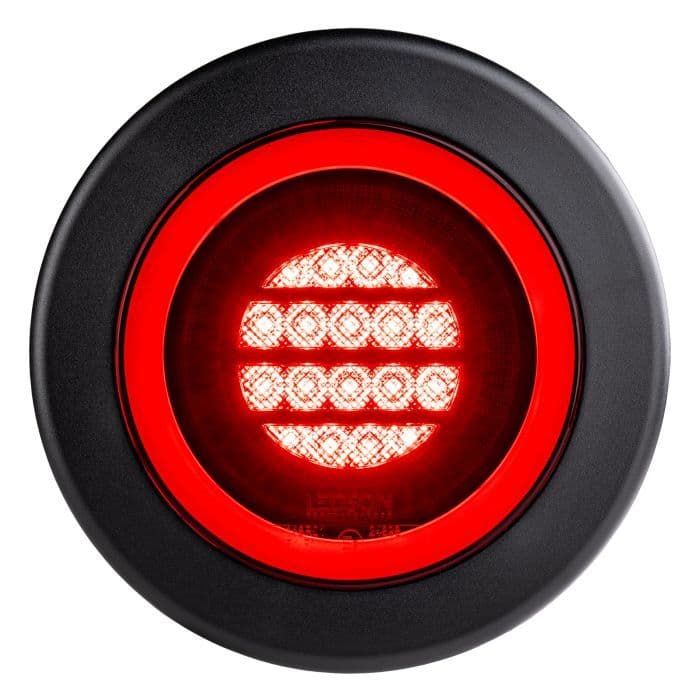

Breeze R1 is a series of multi-function taillights that combine classic round design with modern LED technology. The clean shape gives a timeless expression that is equally suitable for new installations as for upgrading existing lighting.

Breeze R1 is available with the following approved functions:

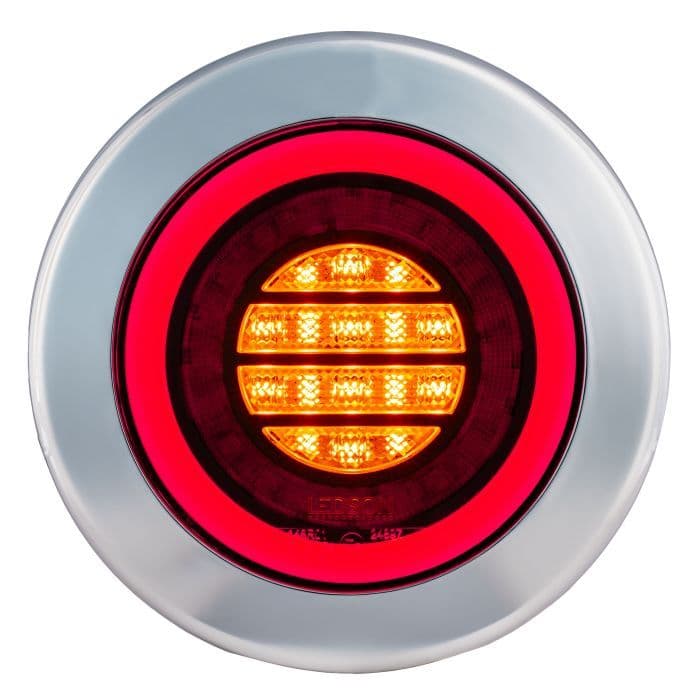

• Tail light / brake light / indicator light

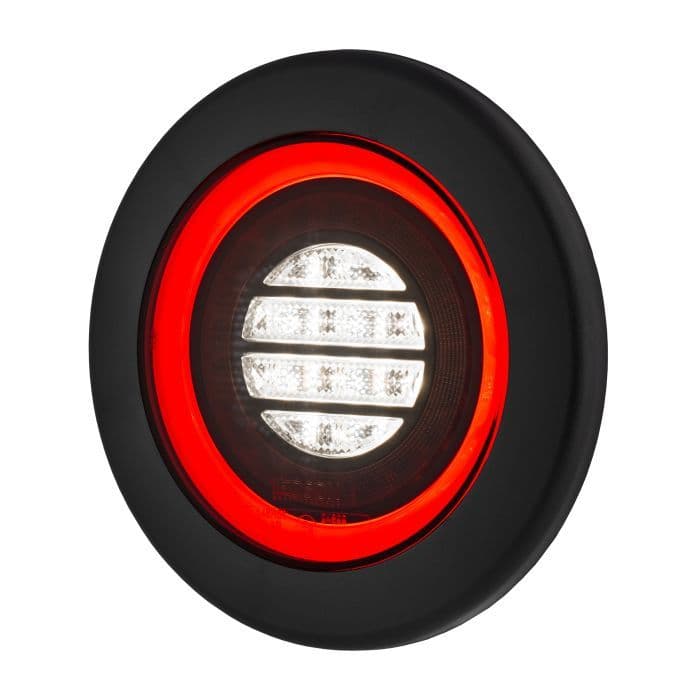

• Tail light / reverse light

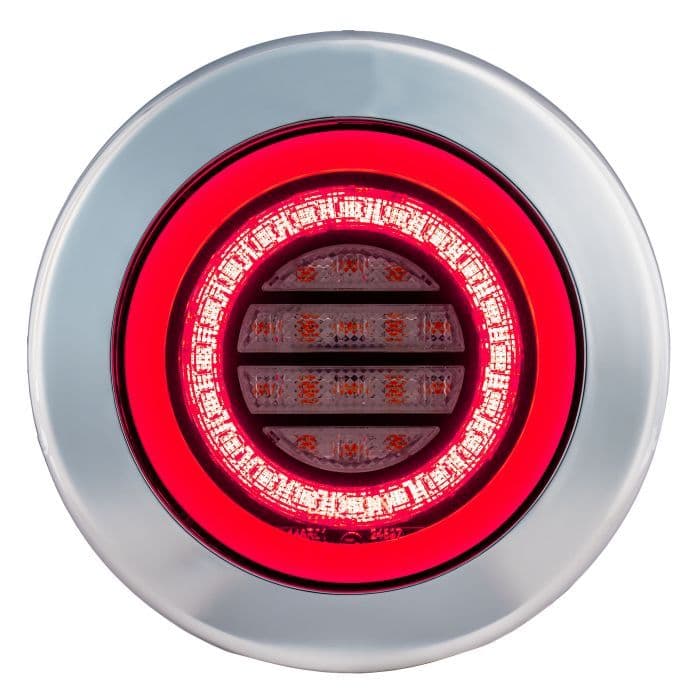

• Tail light / fog tail light

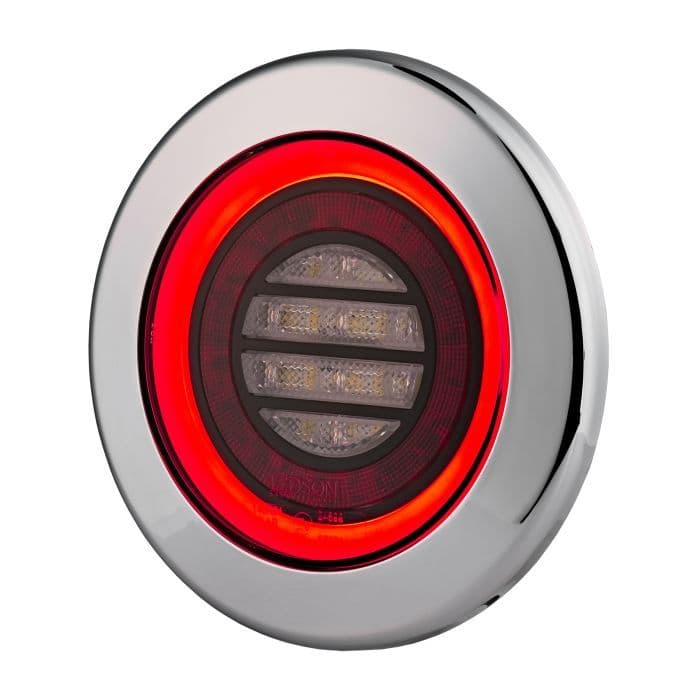

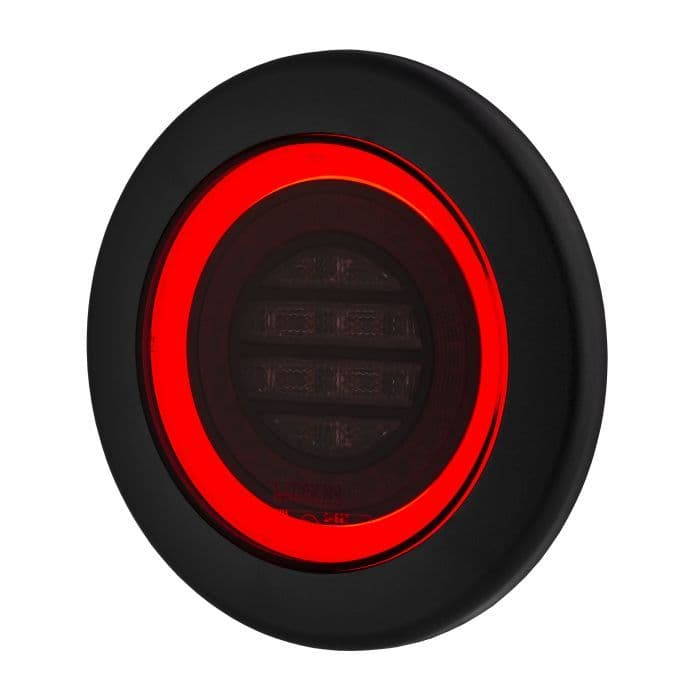

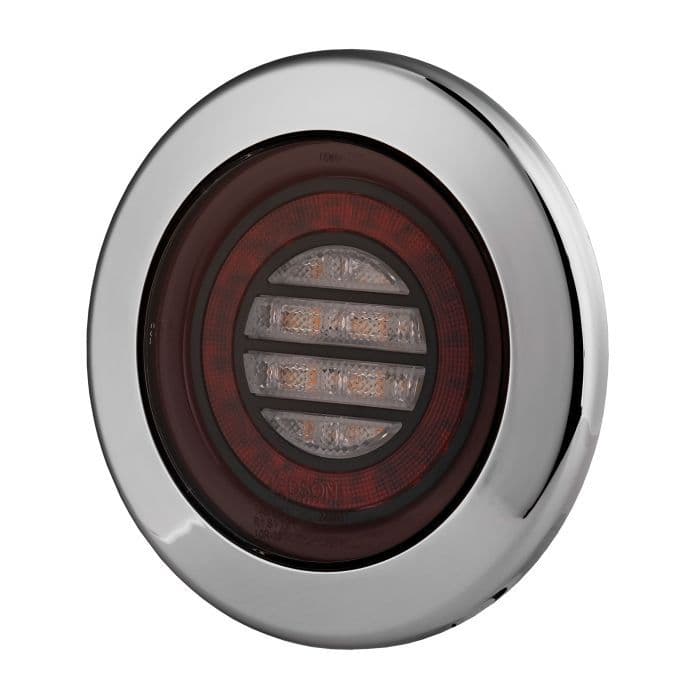

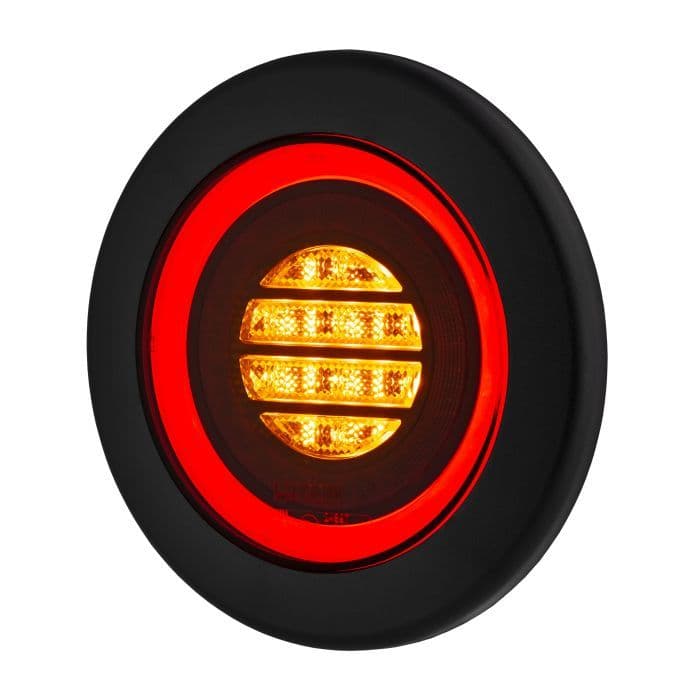

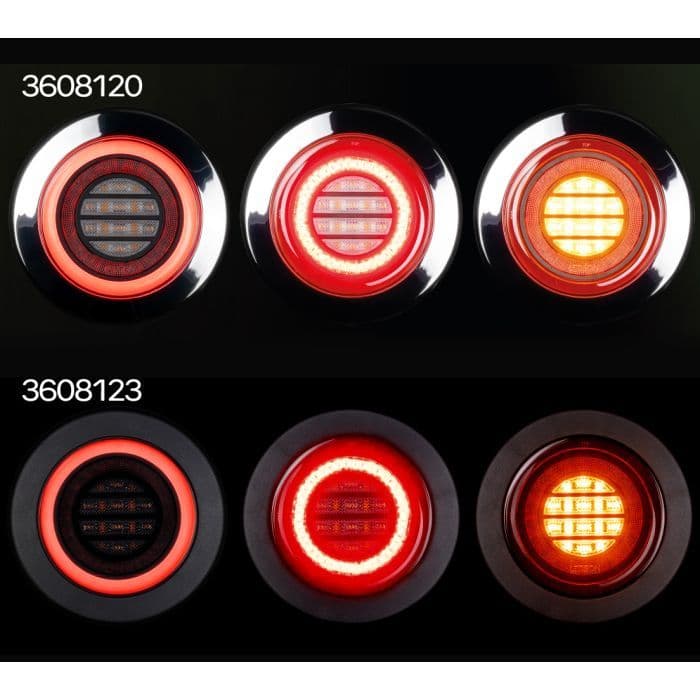

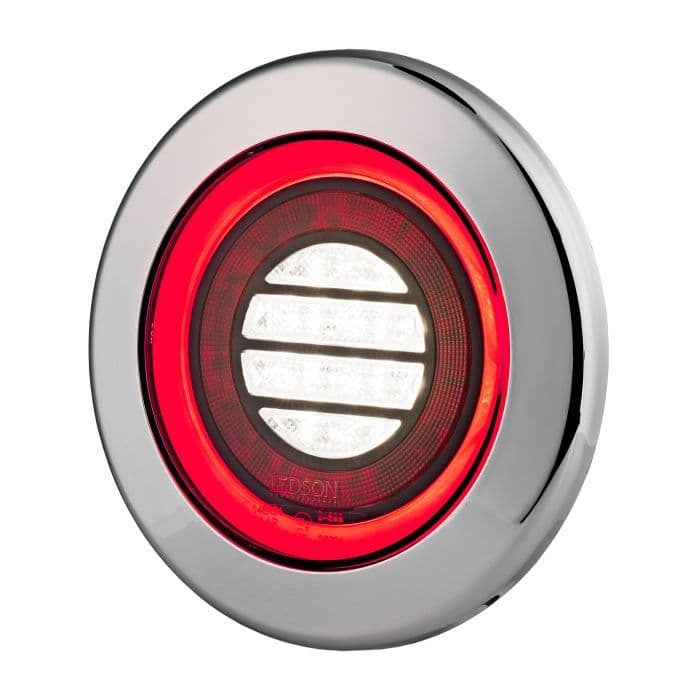

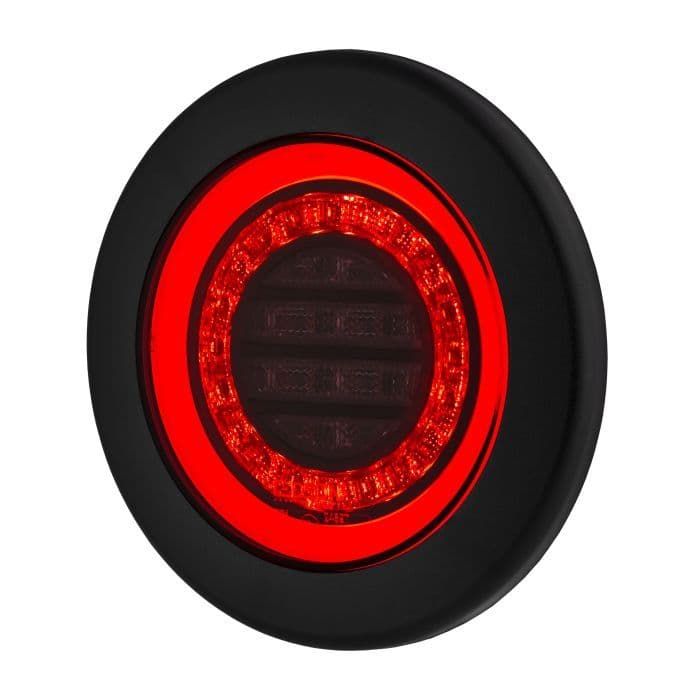

Breeze R1 is available with a chrome cover ring with clear glass or a matte black cover ring with smoked glass, making it easy to adapt the appearance to the vehicle's style. The series is offered with different functions to create a complete taillight solution with the same design language throughout the vehicle - including tail lights with dynamic indicator function that provides clear signaling and a professional expression.

Common dimensions and mounting holes make the lights easy to combine or replace, without re-drilling. Breeze R1 also easily replaces the most common round taillights on the market thanks to common dimensions and hole pattern.

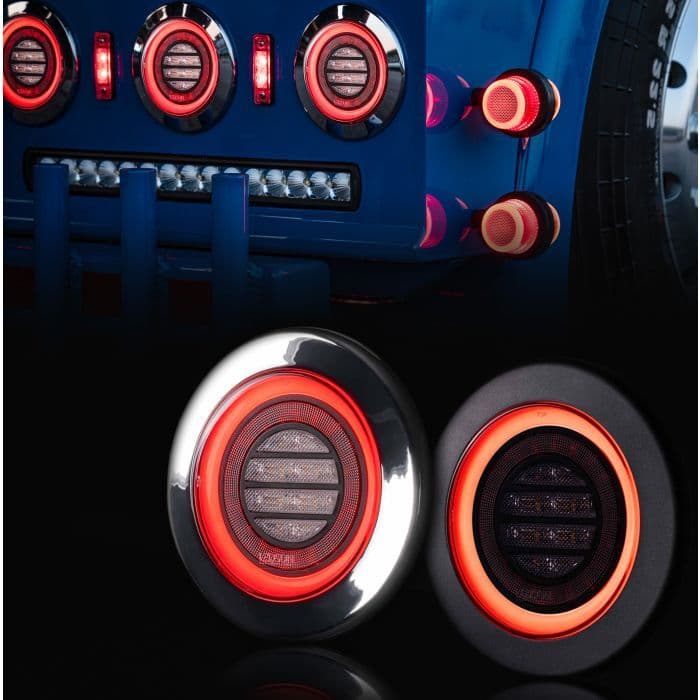

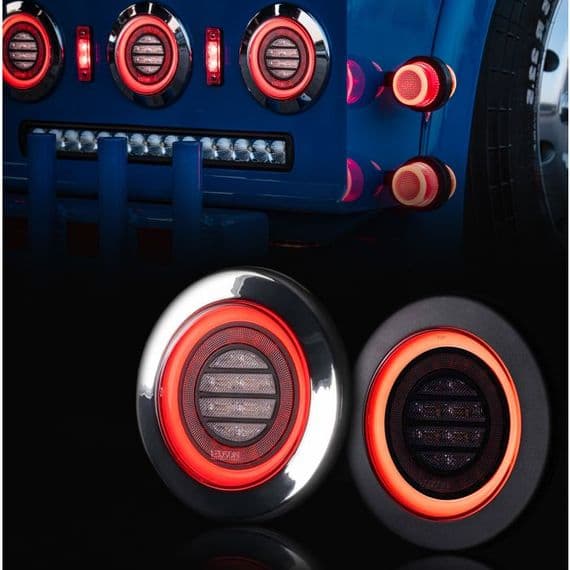

With its round design, Breeze R1 blends naturally into the rear of the vehicle. The robust construction makes the series a safe choice for those who prioritize style, reliability and longevity.

Specifications:

• Multifunction tail light
• Clear lens or smoked lens
• Matte black or chrome cover ring
• ECE R148 (approved for all functions)
• ECE R10 (EMC)
• Total 52–72 LEDs depending on function
• Ventilated design (pressure equalisation)
• IP67 and IP69K rated (waterproof, dustproof and resistant to high-pressure hot water cleaning)
• Voltage: 10–48V
• Warranty: 36 months

Dimensions:

• Diameter: 155 mm
• Depth (overall): 28 mm
• Recessed depth: 10 mm
• Cable: 2.5 m
• Hole spacing: 115 mm

Synchronised indicators: To ensure all indicators on the same side flash simultaneously, connect their respective yellow wires together on that side.

Dynamic indicator: To achieve a dynamic (running) indicator effect, connect the yellow wire from the innermost lamp to the signal wire from your existing indicator relay. Then connect the green wire from the innermost lamp to the yellow wire on the next lamp, and continue this pattern from the innermost to the outermost lamps.
See the image in the instruction manual.

NOTE! Must only be fastened using light hand force. Only use the supplied screws during installation.

Cable colours:

• Black – negative (earth)
• White – tail light
• Red – brake light
• Yellow – indicator (input signal)
• Green – indicator output to next lamp
• Brown – reverse light
• Blue – rear fog light

Technical information:
Mounting position horizontal, Vertical
E-marked ECE R10, ECE R148
Functions (positions) Brakelight, Rearlight, Reverse light, Turn signal
Connection (connector type) Loose cable
Warranty 36 months
Light source LED
Diameter 155
Manufacturer Ledson
Type of reflector (Tir, fiberoptic et.c) Fiberoptics
IP classification IP69K
Color (housing) black
Material (housing) Plastic
Current 24V 0.12
Connection (amount of pins) 5 poles
Shape (round, oval, straight et.c) round
Can replace Jokon BBS 735b, BBS 115, IZE 800622 etc.
Manual English, Swedish
Current 12V 0.24
