Breeze X2 is a modern interpretation of the classic original tail light. Its retro-inspired design recreates a timeless feel combined with all the benefits of today's LED technology, while the ultra-thin design (only 29 mm deep) means they fit seamlessly into both new and existing installations.
Breeze X2 Retro is fully compatible with older rubber housings and frames from, among others, Ledson, Hella, IZE and Omnius.

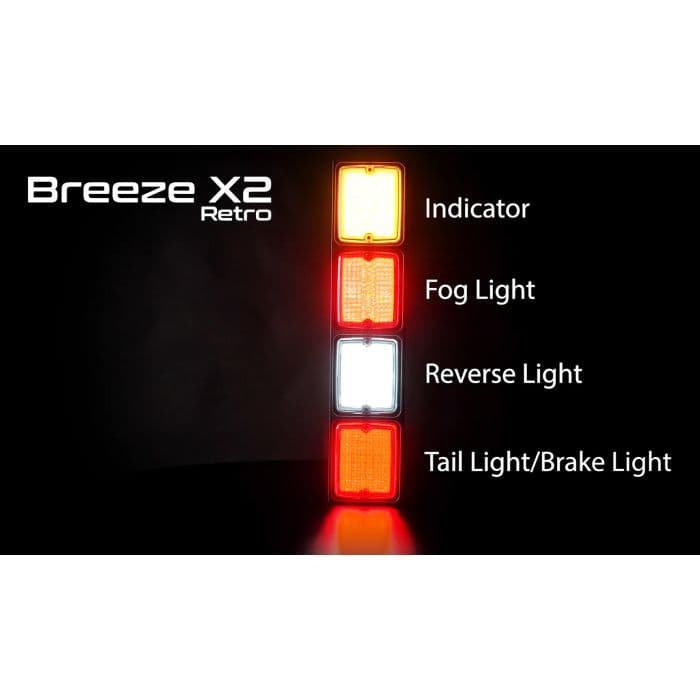

Available with the following approved features:

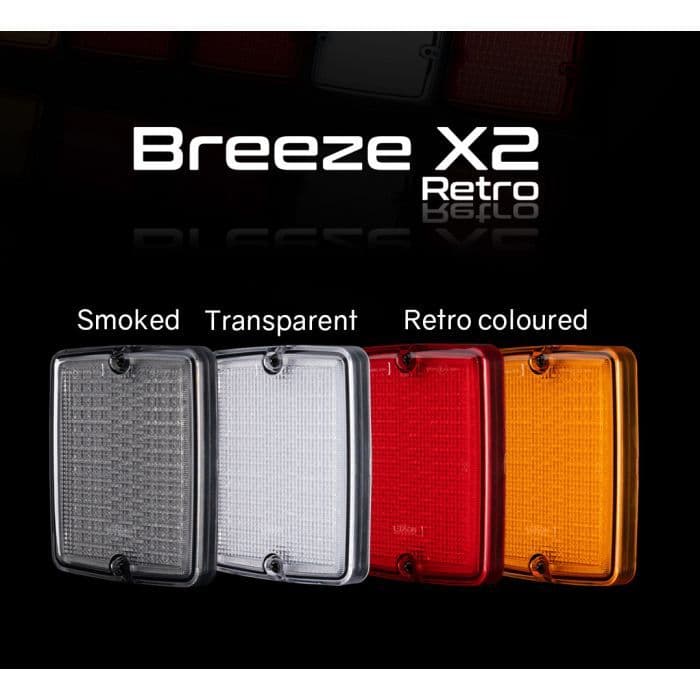

- Tail light / brake light (lens: red, transparent, smoked)
- Turn signal (lens: yellow, transparent, smoked)
- Reverse light (lens: transparent, smoked)
- Rear fog light (lens: red, transparent, smoked)
Breeze X2 Retro can be mounted both horizontally and vertically, both mountings are E-marked according to ECE R148. The very thin design in combination with a generous cable length of 2.5 meters make these tail lights very easy to install. In addition, the variants with indicator light have a built-in dynamic indicator function, which makes it possible to connect up to four lights per side.
Specifications:
- Multifunction taillight that combines old school design with modern LED
- ECE R148 (approved for all functions)
- Total of 150 pcs LED
- IP67 rated (waterproof and dustproof)
- Voltage: 10-48V
- Warranty: 36 months
- Screws and an instruction manual are included

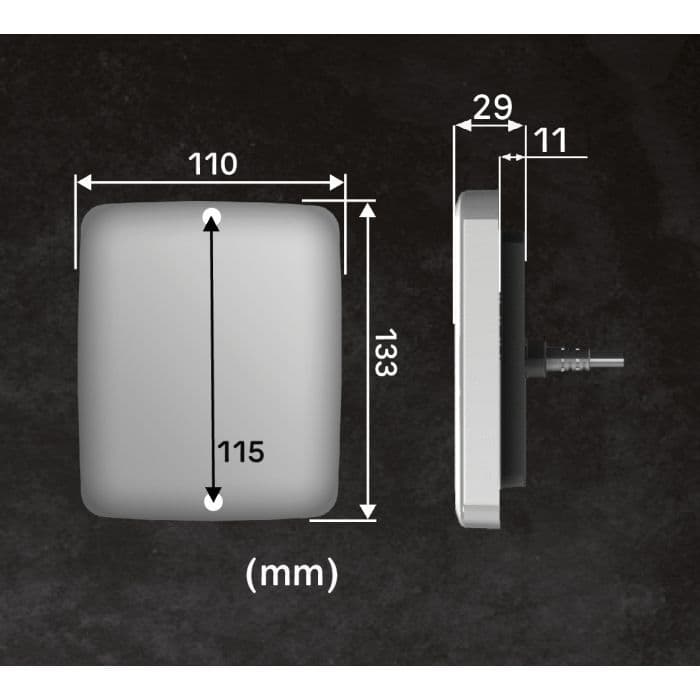

Measures:
- Width: 110 mm
- Height: 133 mm
- Depth (total): 29 mm
- Depth (recess): 10 mm
- Cable: 2,5 m
- CC: 115 mm

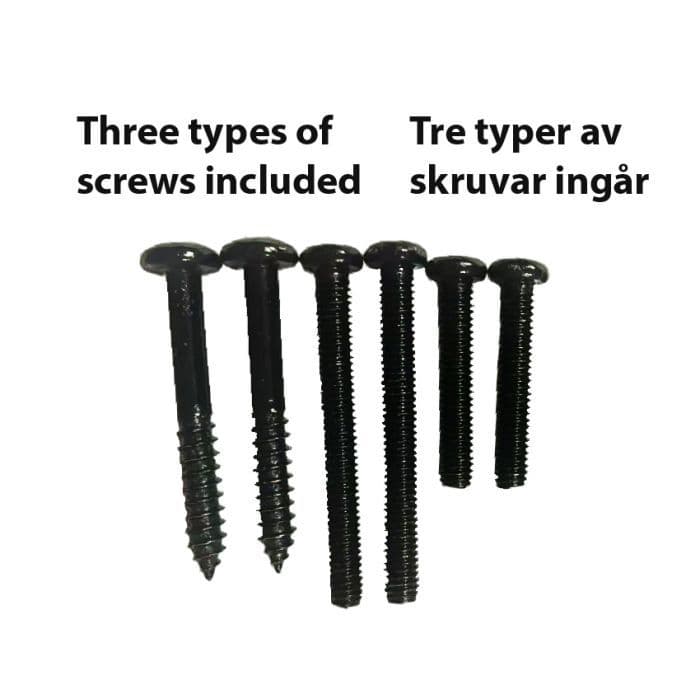

Three different types of screws are included for different mounting options (two per type):
- 4 x 32 mm sheet metal screws (Hella, Briab, Kilafors, Briod, etc.)
- M4 x 35 mm machine screws (LEDON & IZE rubber housings)
- M4 x 22 mm machine screws (Ledson & Omnius plastic frames)
Synchronized Turn Signals: To ensure all turn signals on the same side flash simultaneously, connect all the yellow cables together on that side.
Dynamic turn signal: To achieve a dynamic turn signal, connect the yellow cable from the most inner light as in signal from the existing turn indicator signal. Then connect the green cable from the most inner light to the yellow cable on the light beside the first and continue this pattern from the inner to the outer lights. See the illustration in the instructions manual.
NOTE! Should only be tightened by hand. Only use the included screws for installation.
Cable colors:
- Black - negative (ground)
- White - tail light
- Red - brake light (3608101, 3608105, 3608109)
- Yellow - turn signal (input) (3608102, 3608106, 3608110)
- Green - output signal to the next light (3608102, 3608106, 3608110)
- Brown - reverse light (3608103, 3608107)
- Blue - rear fog light (3608104, 3608108, 3608111)
