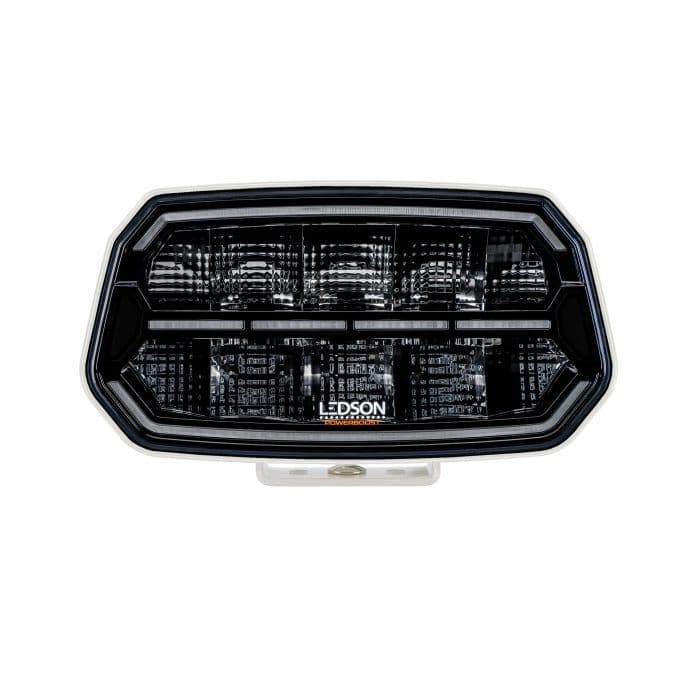

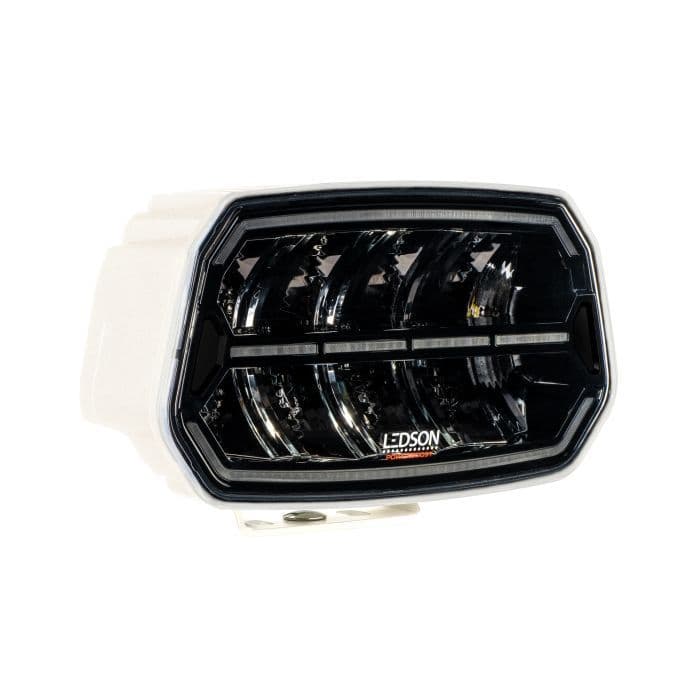

LEDSON Epix10+ Auxiliary Light 10
LEDSON Epix10+ Auxiliary Light 10
LEDSON Epix10+ Auxiliary Light 10
LEDSON Epix10+ Auxiliary Light 10
LEDSON Epix10+ Auxiliary Light 10

Product Description

Ledson developed Swedish design

Epix10+ in elegant ivory white from Ledson is an innovative series of auxiliary lights that take the visual expression of your vehicle to a new level. With a Swedish design language developed in-house by Ledson, high performance is combined with a truly unique and exclusive look that clearly attracts attention. Brightness and design are carefully balanced to create a harmonious whole.

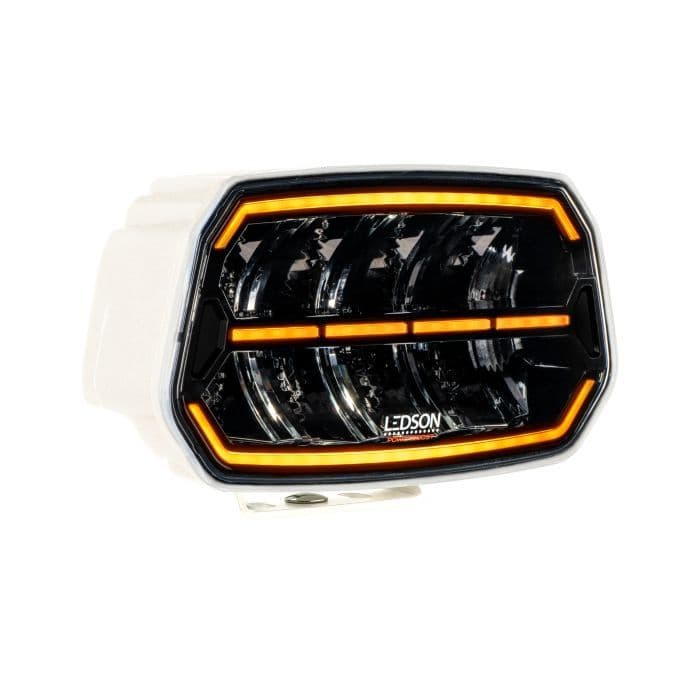

Dynamic position light
Epix10+ is equipped with a dynamic position light where the light turns on with an effective movement from one side of the Auxiliary light to the other before reaching full brightness. This feature gives the vehicle a distinctive and easily recognisable character.

Pulse-controlled powerboost
Epix10 is equipped with Ledson powerboost, an extra power mode for situations where maximum brightness is desired or required. The mode is easily activated via the high beam lever and allows you to adjust the amount of light from the Auxiliary light according to your needs. With the new generation of Ledson powerboost, the mode can be changed very easily by using the light horn (strobeing with the high beam lever) according to the steps shown in the instructions. The Auxiliary light is always supplied in E-approved mode and the powerboost mode is only activated after the instructions have been followed.

Included:

  • One Ledson Epix10+ ivory white LED auxiliary light 10"
  • Mounting bracket, bolts, and screws for single or dual mounting points
  • DT Connector (4-pin)
  • Installation instructions

The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.

Specifications

Brand
LEDSON
Product Code
33491261

Customer reviews

No reviews left yet
Write A Review

Ledson developed Swedish design

Epix10+ in elegant ivory white from Ledson is an innovative series of auxiliary lights that take the visual expression of your vehicle to a new level. With a Swedish design language developed in-house by Ledson, high performance is combined with a truly unique and exclusive look that clearly attracts attention. Brightness and design are carefully balanced to create a harmonious whole.

Dynamic position light
Epix10+ is equipped with a dynamic position light where the light turns on with an effective movement from one side of the Auxiliary light to the other before reaching full brightness. This feature gives the vehicle a distinctive and easily recognisable character.

Pulse-controlled powerboost
Epix10 is equipped with Ledson powerboost, an extra power mode for situations where maximum brightness is desired or required. The mode is easily activated via the high beam lever and allows you to adjust the amount of light from the Auxiliary light according to your needs. With the new generation of Ledson powerboost, the mode can be changed very easily by using the light horn (strobeing with the high beam lever) according to the steps shown in the instructions. The Auxiliary light is always supplied in E-approved mode and the powerboost mode is only activated after the instructions have been followed.

Included:

  • One Ledson Epix10+ ivory white LED auxiliary light 10"
  • Mounting bracket, bolts, and screws for single or dual mounting points
  • DT Connector (4-pin)
  • Installation instructions

The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.

SKU 33491261

ARTICLE GROUP ID 1242

COLOUR White

EFFECT (THEORETICAL) 150

FUNCTIONS (POSITIONS) Auxiliary light

INCHES 10 inch

MANUFACTURER Ledson

INSTALLATION INSTRUCTIONS

TECHINCAL INFORMATION

Features and technical specifications:

  • Ivory white design that matches, among other, Scania's white color
  • Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)

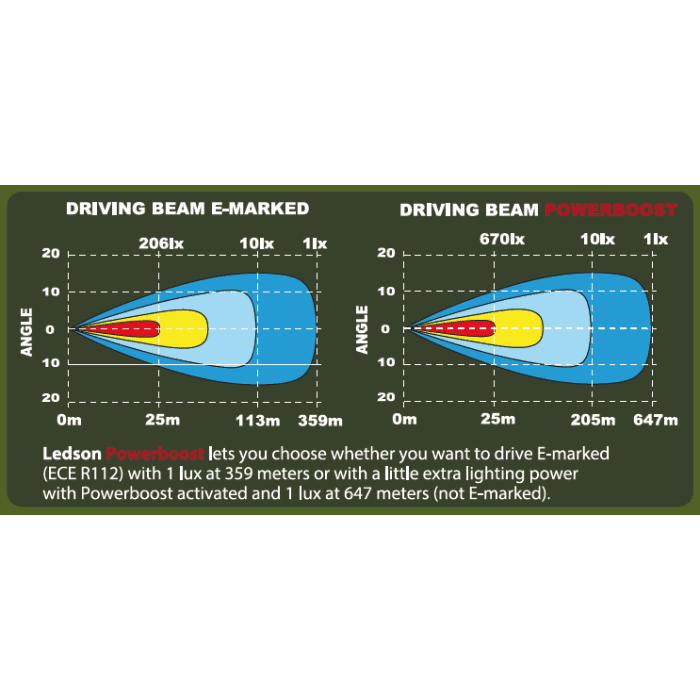

  • Range in E-approved mode: 359 m (1 lux)
  • Range in Powerboost mode: 647 m (1 lux)
  • Driving beam pattern: Enhances the vehicle's standard high beam pattern
  • E-marked: ECE R112 (Ref. 30), R7 (White position light)
  • EMC certified: ECE R10 (does not interfere with radio)
  • E-approved mode: 2 640 lumens (theoretical), 2 112 lumens (actual)
  • Powerboost mode: 11 500 lumens (theoretical), 8 200 lumens (actual)
  • Neutral white light: 5000K
  • ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
  • Side-reflecting optical system
  • Pressure equalization membrane
  • Aluminum heat sink
  • Adjustable stainless steel mount
  • Polycarbonate lens
  • 36-month warranty

Technical data:

  • 150W (10 x 15W Cree LED)
  • Nominal Power: 150W (Powerboost)
  • IP69K (water and dust proof)
  • Cable with 4-pin DT Connector
  • Voltage: 9-36 V
  • Load in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)
  • Load in High Beam Powerboost Mode: 10,6A @ 12V and 4,8A @ 24V (high beam only, no position light)

Dimensions & Weight:

  • Width: 247 mm
  • Height: 145 mm (incl bracket)
  • Depth: 86 mm
  • Weight: 1,6 kg

Cable instructions (detailed instructions included)

  • Red: Auxiliary light (+)
  • Black: Auxiliary light / Position light (- Ground)
  • White: Position light (+) White light
  • Yellow: Position light (+) Yellow-orange light
Brand
LEDSON
Product Code
33491261
No reviews left yet
Write A Review

Customer Reviews

LEDSON Epix10+ Auxiliary Light 10" (Ivory white, Powerboost)

Product Code 33491261

✓ High-performance auxiliary light with a unique appearance
✓ Ledson developed Swedish design in ivory white
✓ Powerboost allows you to choose the intensity you prefer
