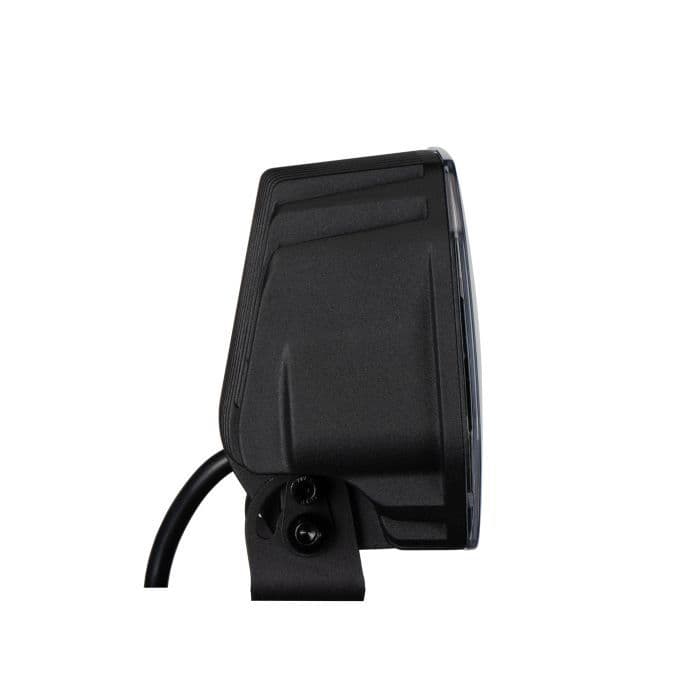

LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
View more images
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10
LEDSON EPIX10+ Auxiliary Light 10

Product Description

Ledson developed Swedish design

Epix10+ from Ledson is an innovative series of auxiliary lights that enhance the appearance and functionality of your vehicle. With a unique Swedish design and high performance, your vehicle will have a distinctive and exclusive look that attracts attention. The combination of high brightness and sophisticated design creates a well-balanced whole.

Dynamic position light
Epix10+ is equipped with a dynamic position light that illuminates with a sequential movement from one side of the Auxiliary light's front to the other before reaching full brightness. This dynamic effect gives the vehicle a distinct, distinctive and recognisable light signature.

Pulse-controlled power boost – smooth handling
Epix10 is equipped with Ledson power boost, an extra power mode intended for situations where maximum brightness is desired or required. Power boost is activated by a simple manoeuvre with the high beam lever, making it possible to quickly adjust the amount of light to the prevailing conditions. With the new generation of Ledson's pulse-controlled power boost, the switch between modes is made via the light horn (strobeing with the high beam lever) in a number of steps described in the instructions. The Auxiliary light is supplied in E-approved mode and the power boost mode is only activated after the instructions have been followed.

Included:

  • One Ledson Epix10+ LED auxiliary light 10"
  • Mounting bracket, bolts, and screws for single or dual mounting points
  • DT Connector (4-pin) (you will also need a DT harness found here)
  • Installation instructions

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and will invalidate the warranty.

Specifications

Brand
LEDSON
Product Code
33491260

Customer reviews

No reviews left yet
Write A Review

Ledson developed Swedish design

Epix10+ from Ledson is an innovative series of auxiliary lights that enhance the appearance and functionality of your vehicle. With a unique Swedish design and high performance, your vehicle will have a distinctive and exclusive look that attracts attention. The combination of high brightness and sophisticated design creates a well-balanced whole.

Dynamic position light
Epix10+ is equipped with a dynamic position light that illuminates with a sequential movement from one side of the Auxiliary light's front to the other before reaching full brightness. This dynamic effect gives the vehicle a distinct, distinctive and recognisable light signature.

Pulse-controlled power boost – smooth handling
Epix10 is equipped with Ledson power boost, an extra power mode intended for situations where maximum brightness is desired or required. Power boost is activated by a simple manoeuvre with the high beam lever, making it possible to quickly adjust the amount of light to the prevailing conditions. With the new generation of Ledson's pulse-controlled power boost, the switch between modes is made via the light horn (strobeing with the high beam lever) in a number of steps described in the instructions. The Auxiliary light is supplied in E-approved mode and the power boost mode is only activated after the instructions have been followed.

Included:

  • One Ledson Epix10+ LED auxiliary light 10"
  • Mounting bracket, bolts, and screws for single or dual mounting points
  • DT Connector (4-pin) (you will also need a DT harness found here)
  • Installation instructions

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and will invalidate the warranty.

SKU 33491260

1 LUX AT X METERS 359, Powerboost: 647

ARTICLE GROUP ID 1242

BEAM PATTERN Driving beam

COLOUR (SECONDARY FUNCTIONS) Orange, White

COLOUR TEMPERATURE (K) 5000K

CURRENT 12V 2,2A / 10,6A

CURRENT 24V 1,1A / 4,8A

DEPTH (MM) 86

DEPTHNO 86

E-MARKED ECE R10, ECE R112, R7

EFFECT (THEORETICAL) 150

FUNCTIONS (POSITIONS) Auxiliary light, Position light

HEIGHT (MM) 145

HEIGHTNO 145

INCHES 10 tum

IP-CLASSIFICATION IP69K

KELVIN 5000

LUMEN (ACTUAL) Powerboost: 8200

LUMEN (THEORETICAL) Powerboost: 11500

MANUFACTURER Ledson

MOUNTINGPOSITION Vertical

POWERBOOST Yes

WIDTH (MM) 247

INSTALLATION INSTRUCTIONS

TECHNICAL INFORMATION

Features and technical specifications:

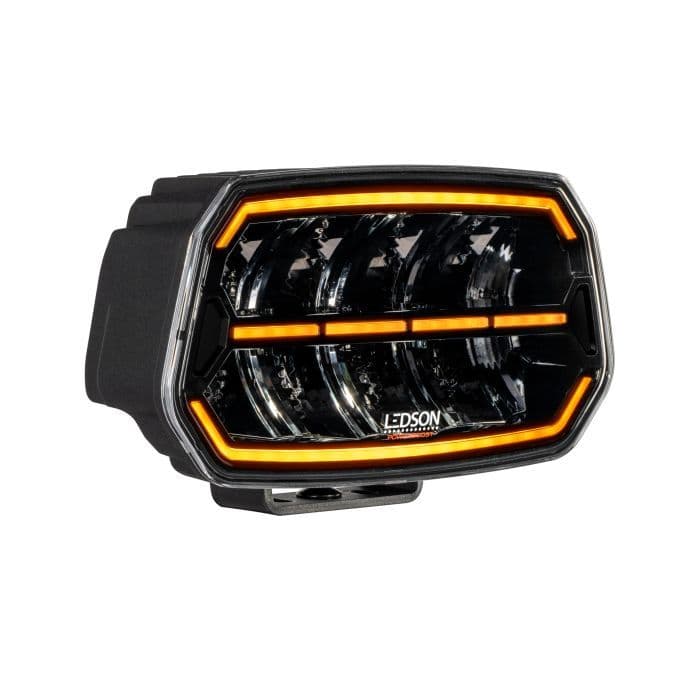

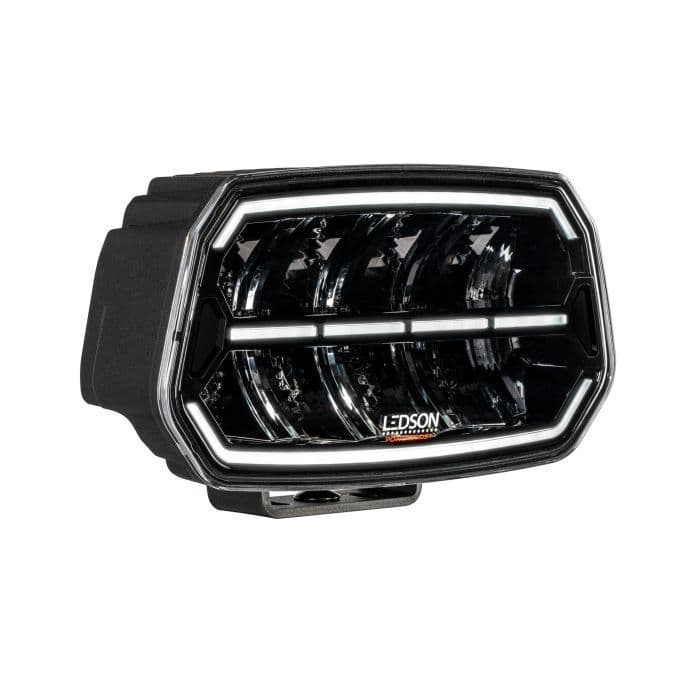

  • Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)
  • Range in E-approved mode: 359 m (1 lux)
  • Range in Powerboost mode: 647 m (1 lux)
  • Driving beam pattern: Enhances the vehicle's standard high beam pattern
  • E-marked: ECE R112 (Ref. 30), R7 (White position light)
  • EMC certified: ECE R10 (does not interfere with radio)
  • E-approved mode: 2 640 lumens (theoretical), 2 112 lumens (actual)
  • Powerboost mode: 11 500 lumens (theoretical), 8 200 lumens (actual)
  • Neutral white light: 5000K
  • ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
  • Side-reflecting optical system
  • Pressure equalization membrane

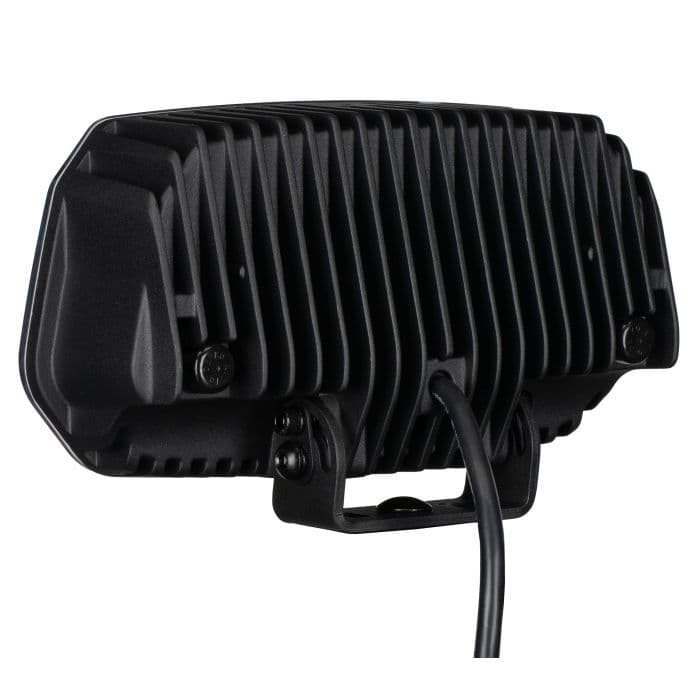

  • Aluminum heat sink
  • Adjustable stainless steel mount
  • Polycarbonate lens
  • 36-month warranty

Technical data:

  • 150W (10 x 15W Cree LED)
  • Nominal Power: 150W (Powerboost)
  • IP69K (water and dust proof)
  • Cable with 4-pin DT Connector
  • Voltage: 9-36 V
  • Load in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)
  • Load in High Beam Powerboost Mode: 10,6A @ 12V and 4,8A @ 24V (high beam only, no position light)

Dimensions & Weight:

  • Width: 247 mm
  • Height: 145 mm (incl bracket)
  • Depth: 86 mm
  • Weight: 1,6 kg

Cable instructions (detailed instructions included)

  • Red: Auxiliary light (+)
  • Black: Auxiliary light / Position light (- Ground)
  • White: Position light (+) White light
  • Yellow: Position light (+) Yellow-orange light
