Treat yourself to the best. Epix+ stands out from the crowd with a self-developed sporty design, created with today’s modern cars in mind. Approved R65 warning lights ensure your visibility and the world-unique position light is fully integrated into the reflector.

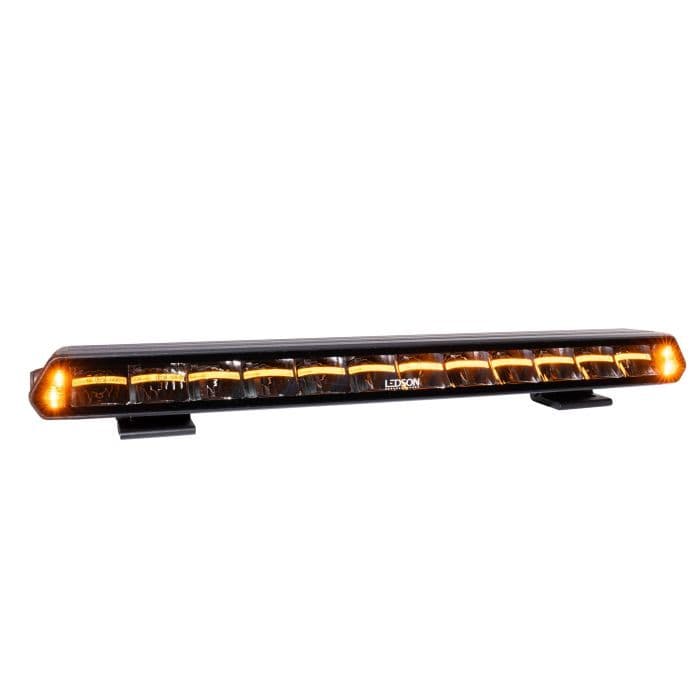

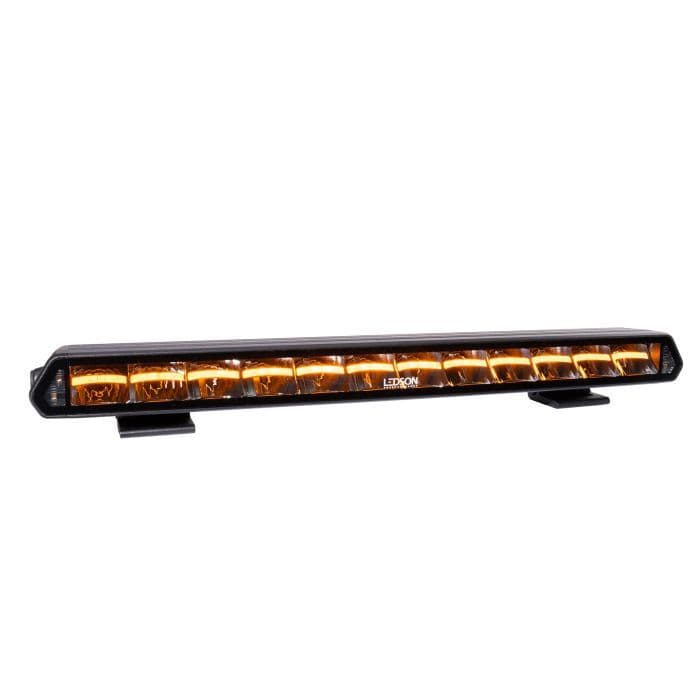

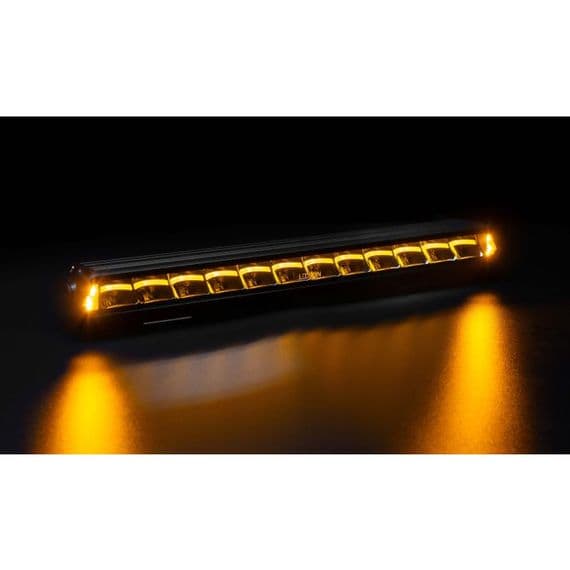

Epix⁺ Prime is a LED bar with a proprietary, sporty design developed with a focus on modern vehicles. R65-approved strobe lights ensure high visibility, and the Position light is unique in that it is fully integrated into the reflector. The Epix20⁺ Prime Strobe model is also available as a package together with a bracket and cabling. Epix20⁺ Prime is also available in a version without strobe lights.

The dynamic ignition of the position light gives the LED bar a visually impressive start sequence. The Epix⁺ series has been developed to combine sought-after features in a LED bar, with maximised performance in E-approved mode and the option of a power boost for off-road use. R65-approved strobe lights provide good visibility when working on the road and contribute to increased safety regardless of weather conditions and time of day. Proprietary, smart mounts allow for flexible mounting on the vehicle, both in terms of placement and attachment method.

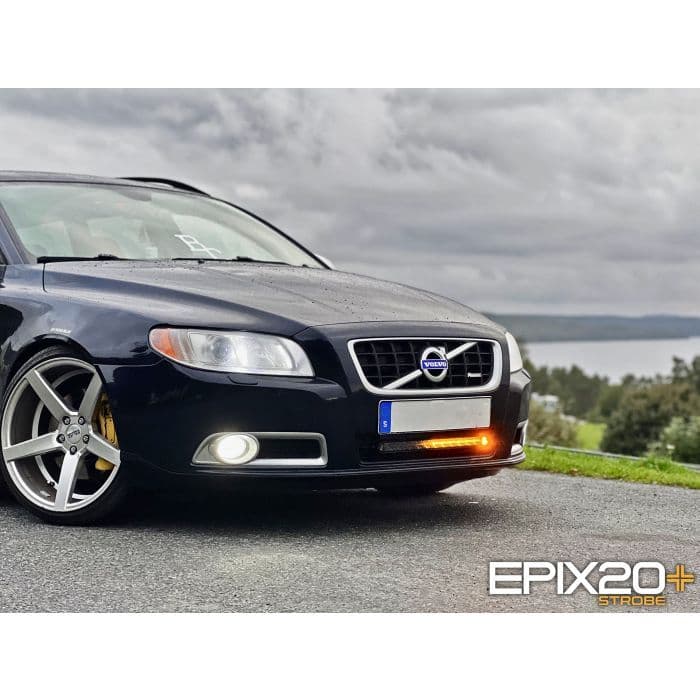

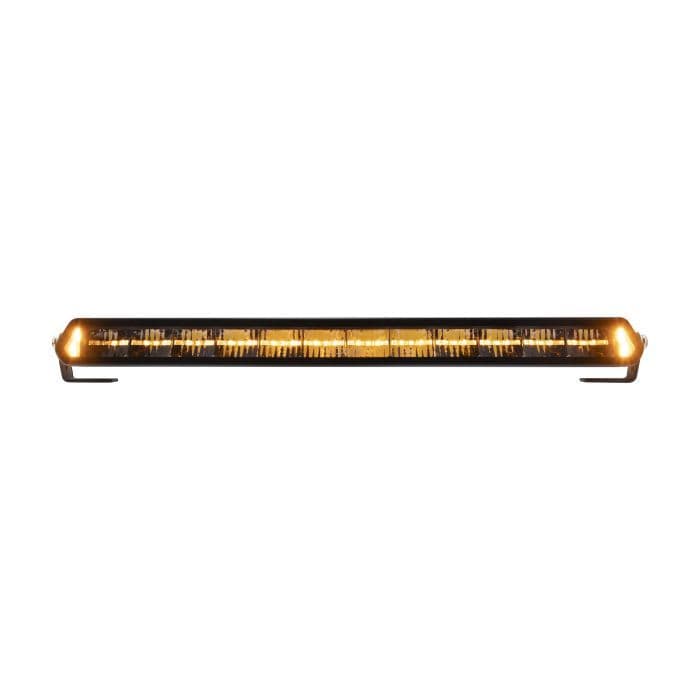

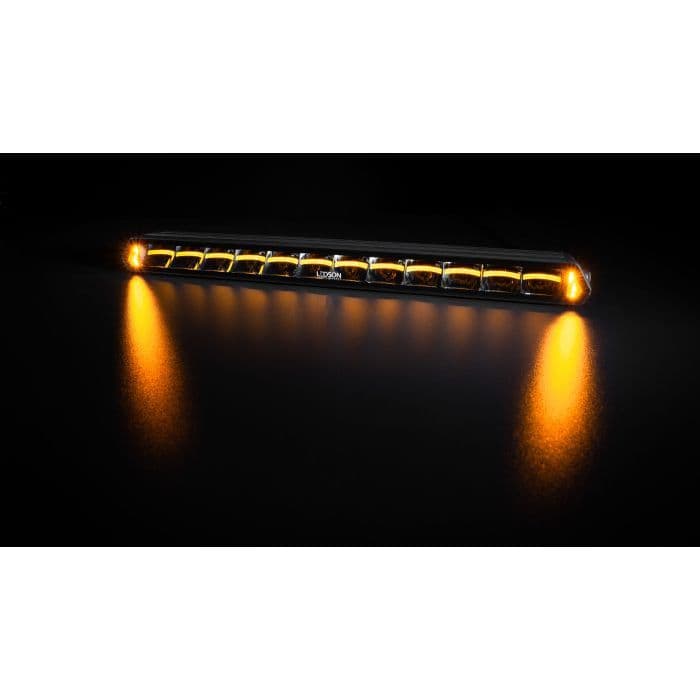

Epix⁺ Prime is aimed at users who want a future-oriented lighting solution. The ramp design has been developed exclusively by Ledson and harmonises with contemporary, modern vehicles, visually enhancing the overall impression of the vehicle. The dynamic position light turns on with a sweeping motion from one side of the ramp to the other before reaching full brightness. The fact that the position light is integrated into the reflector is a unique feature that gives it a particularly distinctive look.

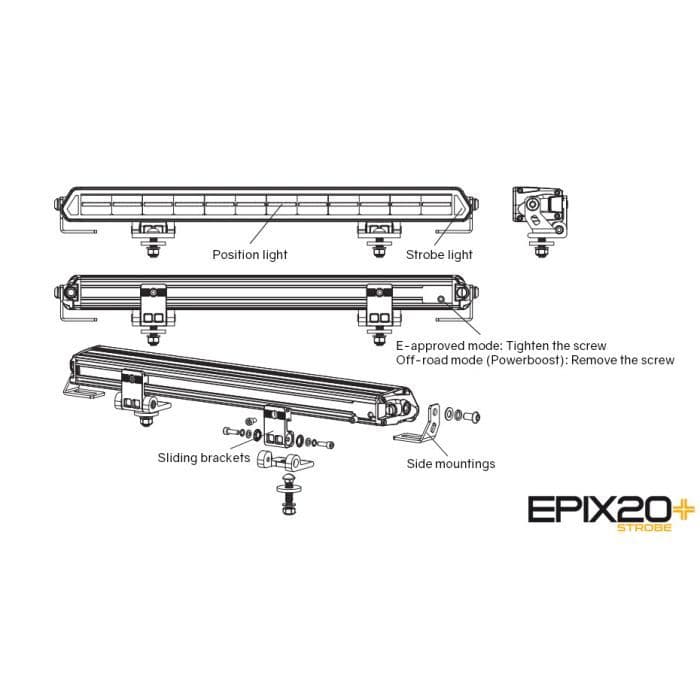

The powerboost function allows you to select the desired light level. By tightening or loosening a screw on the ramp, you can switch between E-approved mode and "off-road" power boost mode, adapted for situations where maximum brightness is needed on the road ahead of the vehicle.

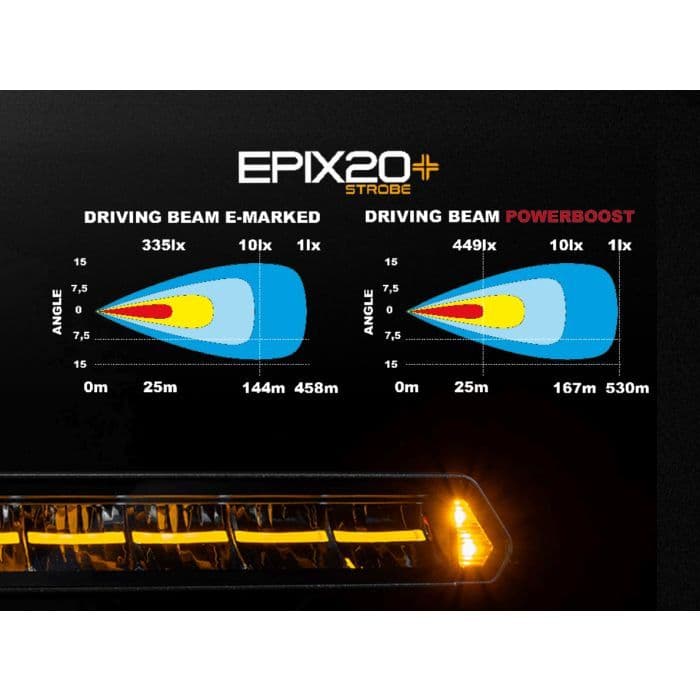

The beam pattern is of the Driving Beam (Drive) type. The Driving Beam reflectors are computer-optimised to provide a beam pattern that mimics a combination (combo) and enhances the vehicle's existing headlights and lights.

A DT relay set is recommended, primarily a cable set with 1 x 6-pin DT connector (item no. 7801006). The Ledson Connect system provides very simple connection and is also prepared for interconnection in case of future needs to expand with more auxiliary lights or ramps.

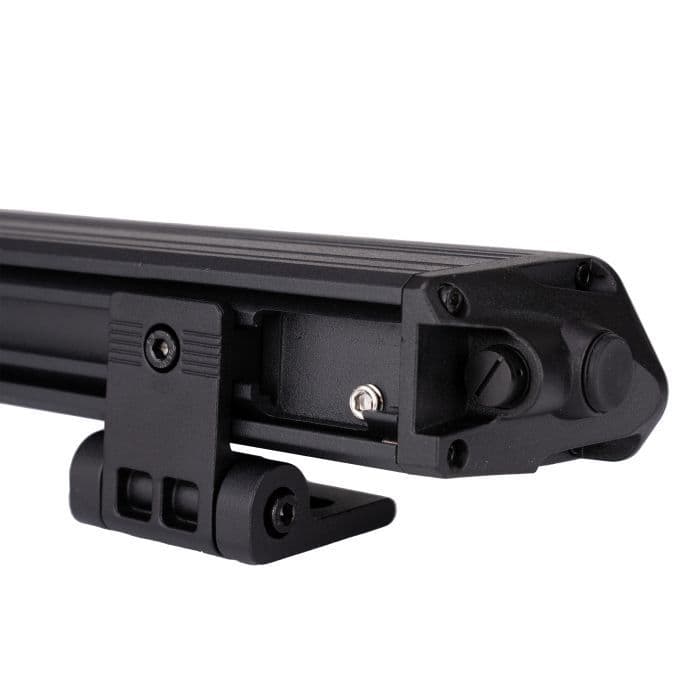

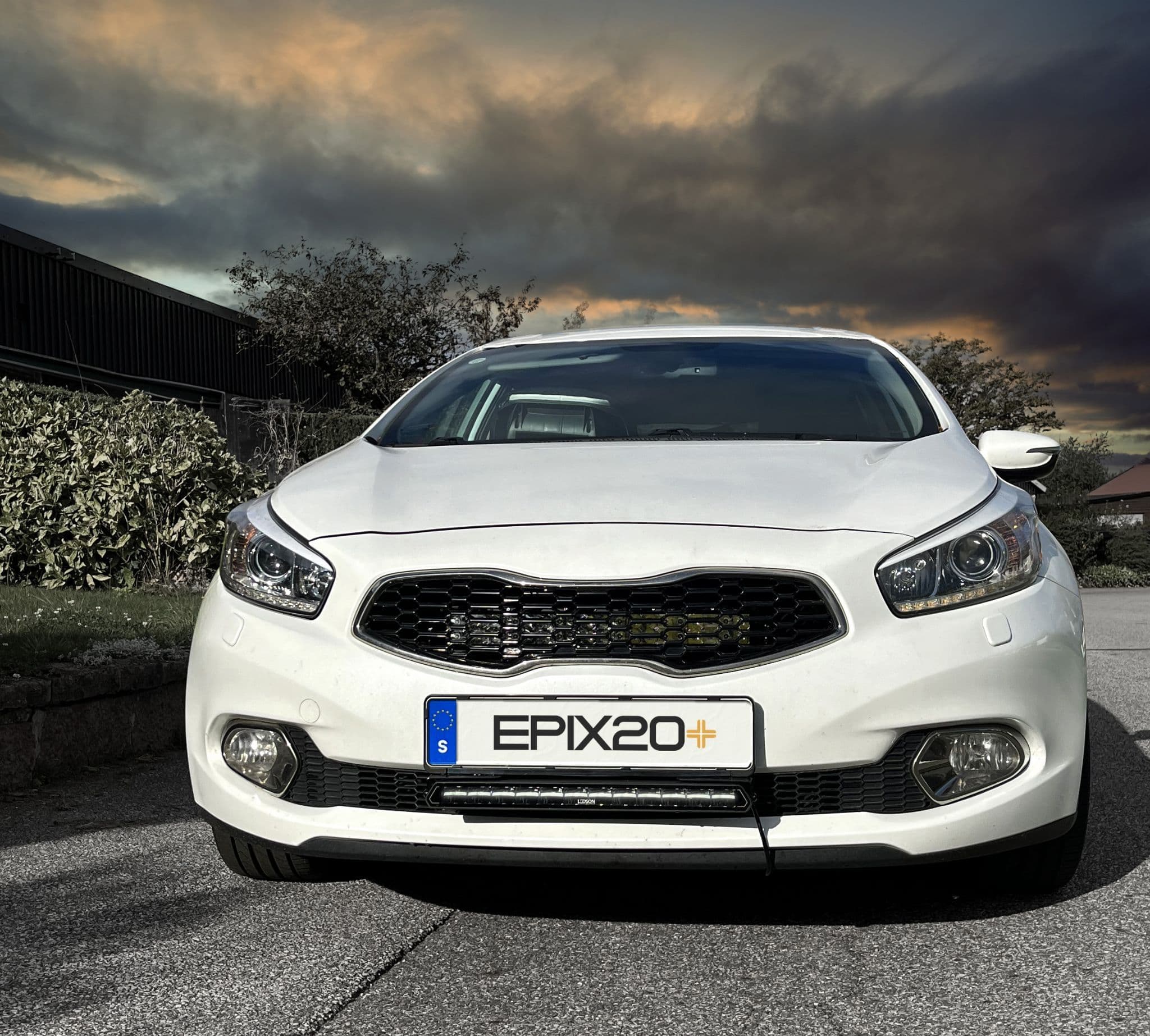

It can be mounted on the vehicle by attaching it directly to the vehicle body by drilling in a suitable location, or alternatively with a number plate holder or tube bracket for a more discreet and convenient installation. A specially adapted holder has been developed specifically for this ramp, called the Holder for Epix20⁺.


The delivery includes Epix20⁺ Strobe 20" LED bar with powerboost, bolts and screws for mounting in a suitable surface, mounting details for end mounting and mounting details for rear mounting in a standing or hanging design. A 6-pin DT connector is included, and the corresponding 6-pin cable set must be ordered separately. Installation instructions are included.


The flash patterns include:
Single flash synchronised 2.2 Hz (R65)
Single flash asynchronous 2.2 Hz
Triple flash synchronised 1.1 Hz
Triple flash asynchronous 1.1 Hz
Quadruple flash synchronised 1.25 Hz
Quadruple flash asynchronous 1.25 Hz
Combination of one long and five short synchronised 0.83 Hz
Combination of one long and five short asynchronous 0.83 Hz
Flash series synchronised 10 Hz and flash series asynchronous 10 Hz.

The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.
