LEDSON EPIX30+ LED bar package for Volvo 2014 - 2020 FH
LEDSON EPIX30+ LED bar package for Volvo 2014 - 2020 FH
LEDSON EPIX30+ LED bar package for Volvo 2014 - 2020 FH
LEDSON EPIX30+ LED bar package for Volvo 2014 - 2020 FH
LEDSON EPIX30+ LED bar package for Volvo 2014 - 2020 FH

Product Description

Description

Ledson EPIX30+ with Powerboost and position lights – LED light bar package for Volvo FH, model years 2014–2020.

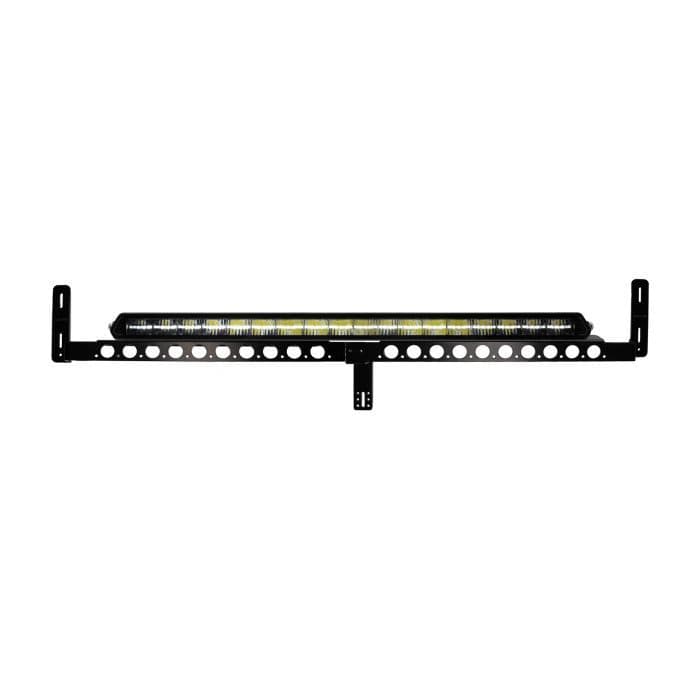

A specially designed mounting kit enables quick and cost-effective installation and flexible placement of the LED light bar. The light bar can be mounted concealed behind the front grille or visible through the grille, either at the upper or lower grille.

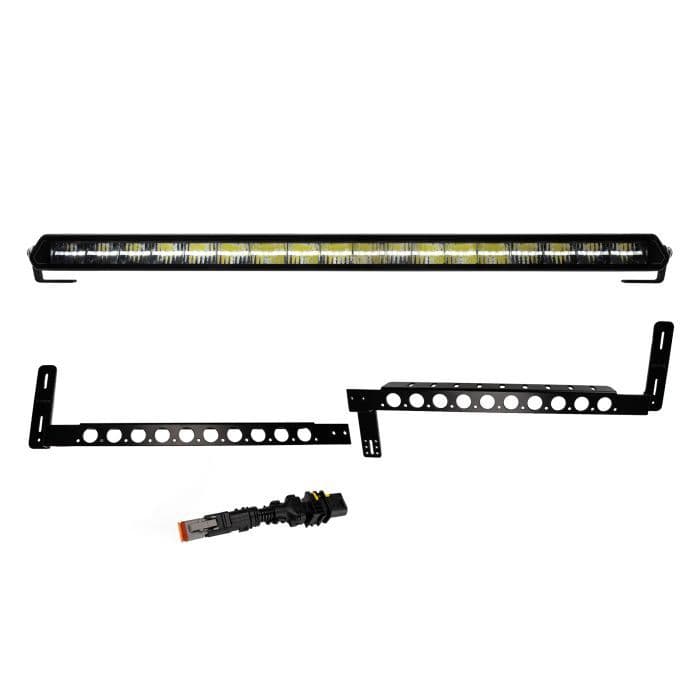

Contents:

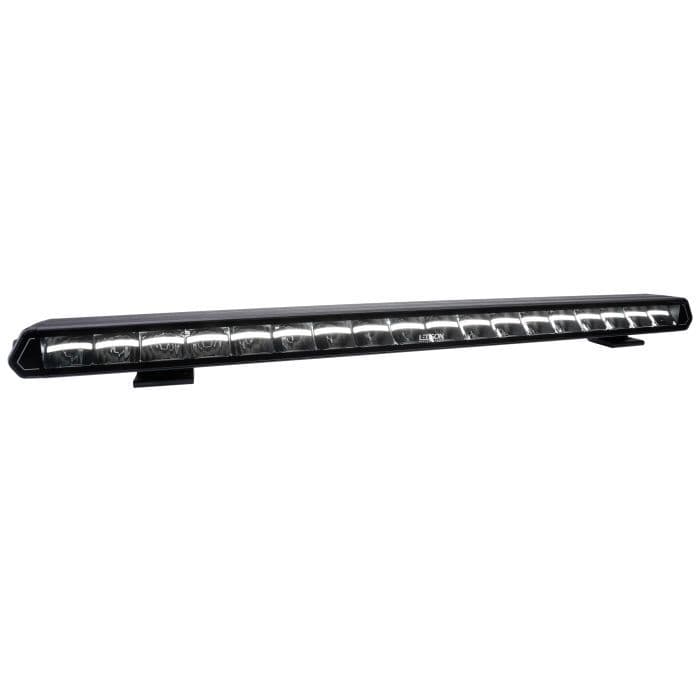

EPIX30+ LED ramp 30" (item number 334915188)
Mounting kit bracket

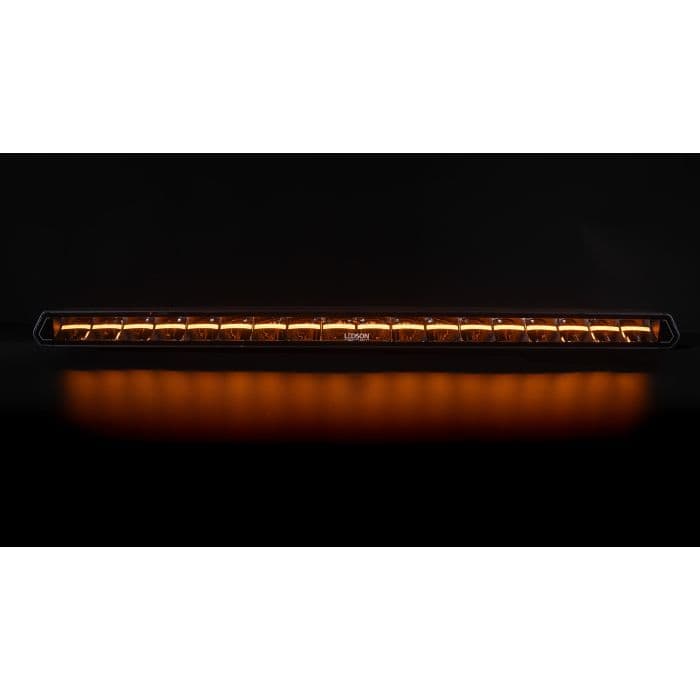

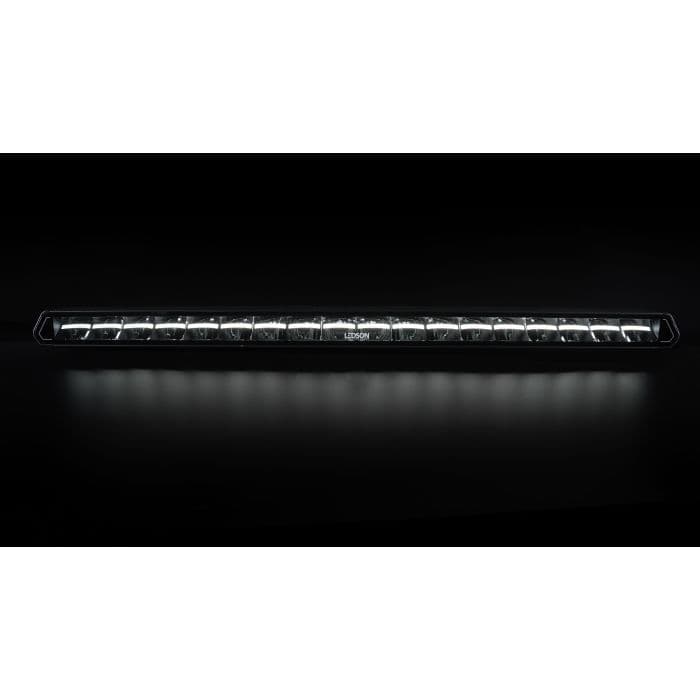

EPIX30+ stands out with its unique, sporty design tailored for modern vehicles. A unique feature is the integrated position light in the reflector, which gives the ramp a distinctive character. The dynamic ignition of the position light creates an impressive start-up effect with light sweeping from one side to the other before full ignition occurs.
The ramp's performance is optimised in E-approved mode, with the option of Powerboost for use off public roads. By tightening or loosening a screw on the ramp, you can easily switch between these modes, providing maximum brightness when needed.
The design is exclusively developed by Ledson and harmonises with the modern aesthetics of today's vehicles, enhancing the overall impression.

Light pattern: Driving Beam (Drive)
The reflectors are computer-optimised to mimic and enhance the vehicle's existing headlights, with a light pattern similar to a combo.

Important to note:
The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.

Technical

Beam Pattern Driving beam
Brand Ledson
Brightness, actual (lumen) 16300
Brightness, theoretical (lumen) 13200
Delivered as Package
E-marked ECE R10, ECE R112, R7
Functions (positions) LED bar
Inches 30 tum
Light Source LED
Manufacture Ledson
Power consumption 270 W (18 x 15 W LED)
Range 458 m (1 lux), Powerboost: 672 m (1 lux)
Vehicle Brand Volvo
Voltage 24 V

Specifications

Brand
LEDSON
Product Code
LSEP30V1

Customer Reviews

LEDSON EPIX30+ LED bar package for Volvo 2014 - 2020 FH

Product Code LSEP30V1

✓ EPIX30+ with mounting details for Volvo FH
✓ Reaches 672 m at 1 lux with Powerboost
✓ Position light with unique dynamic ignition
