Treat yourself to the best. Epix+ stands out from the crowd with a self-developed sporty design, created with today’s modern cars in mind. Approved R65 warning lights ensure your visibility and the world-unique position light is fully integrated into the reflector.

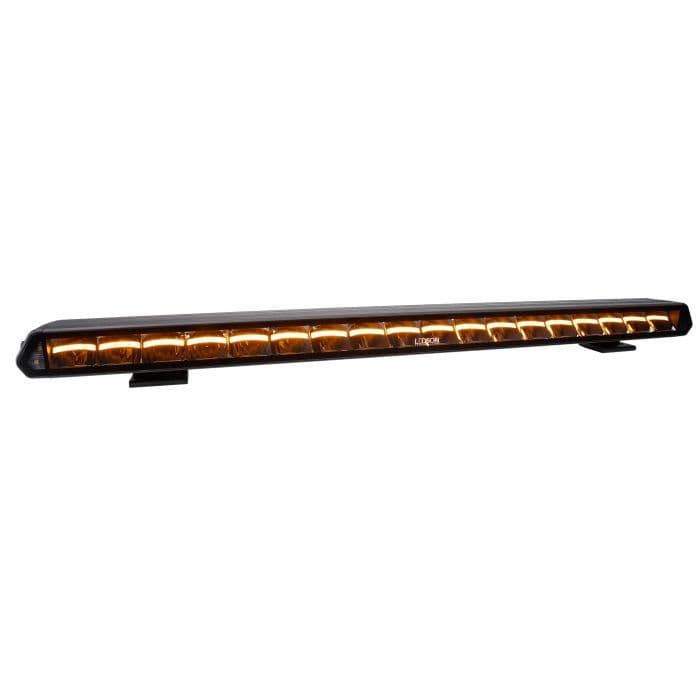

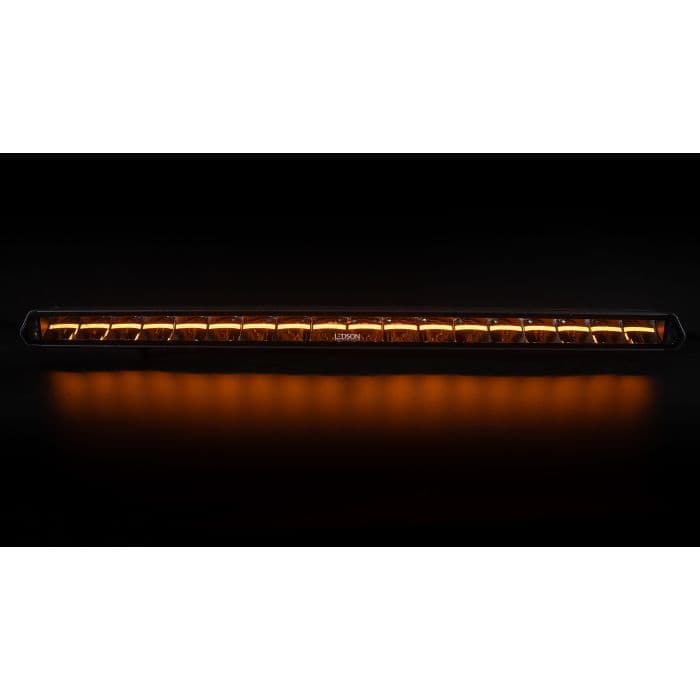

Epix⁺ is a LED bar with a proprietary, sports-inspired design adapted for today's modern vehicles. R65-approved strobe lights ensure high visibility, while the world's only Position light is fully integrated into the reflector. The Epix30⁺ Prime model is also available in a version without the strobe light function.
The LED bar's dynamic ignition of the position light provides an effective start sequence. The design is developed to bring together all the key functions required in a modern LED bar. Performance is optimised in E-approved mode, with the option of powerboost for use in off-road mode when maximum brightness is required. R65-approved strobe lights increase safety when working on the road, regardless of weather conditions and time of day. Smart mountings developed in-house enable flexible mounting on the vehicle, both in terms of placement and orientation.

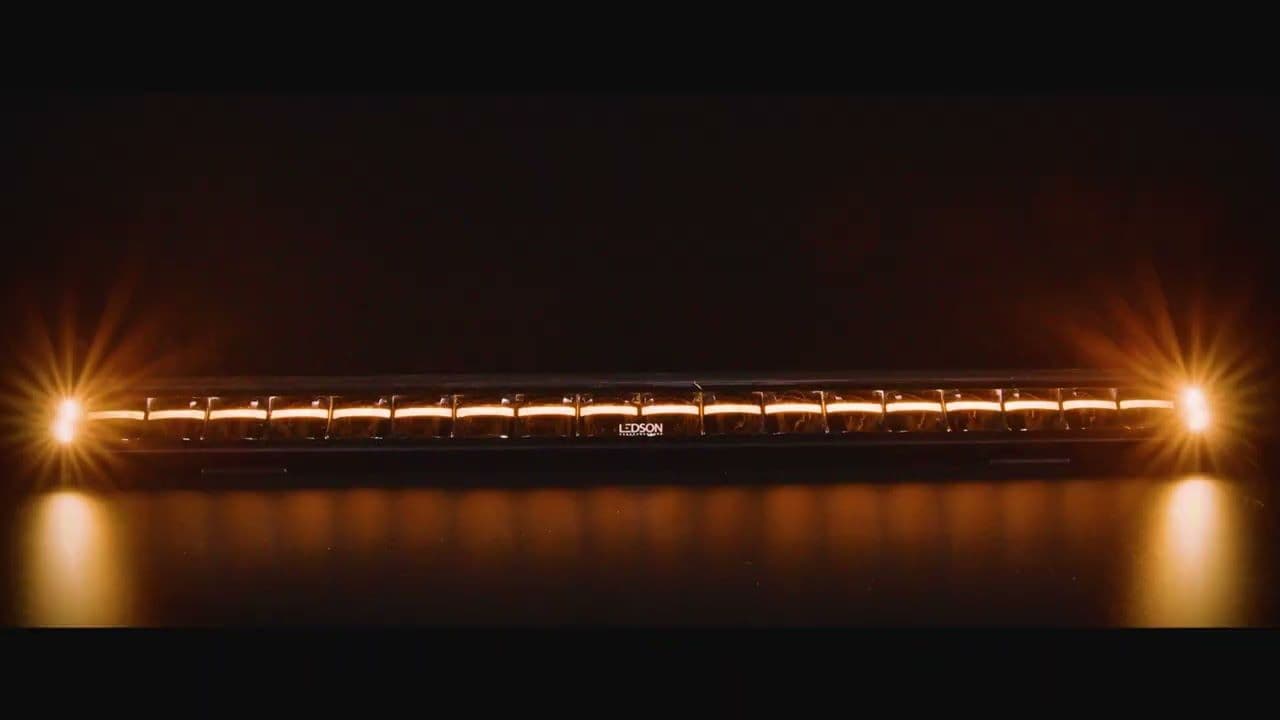

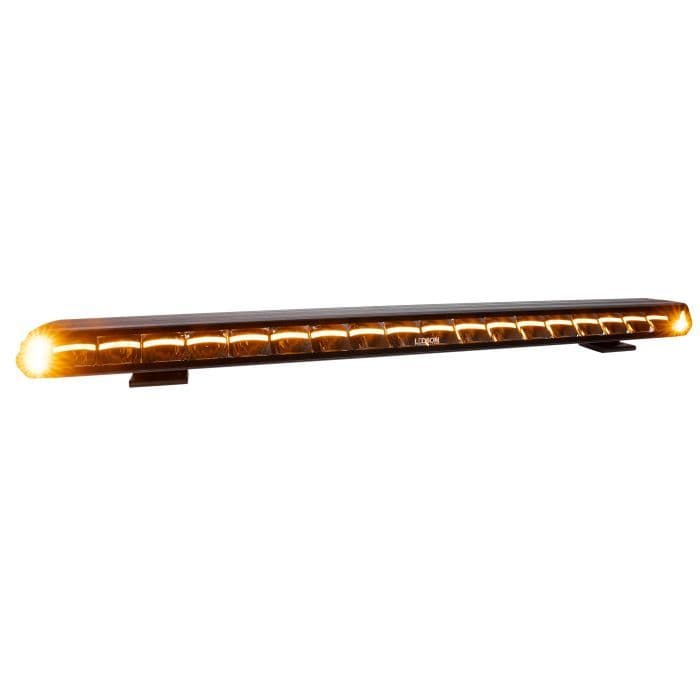

The ramp design is exclusively developed by Ledson and harmonises with the most modern car models, giving the vehicle an upgraded look. The dynamic position light turns on with a sequential movement along the length of the ramp from one side to the other before shining at full intensity. The integrated position light in the reflector creates a distinctive look.

The powerboost function allows the light output to be adjusted as needed. By tightening or loosening a screw on the ramp, the mode can be easily switched between E-approved operating mode and "off road" powerboost mode, for situations where the highest possible brightness on the road ahead of the vehicle is desirable.

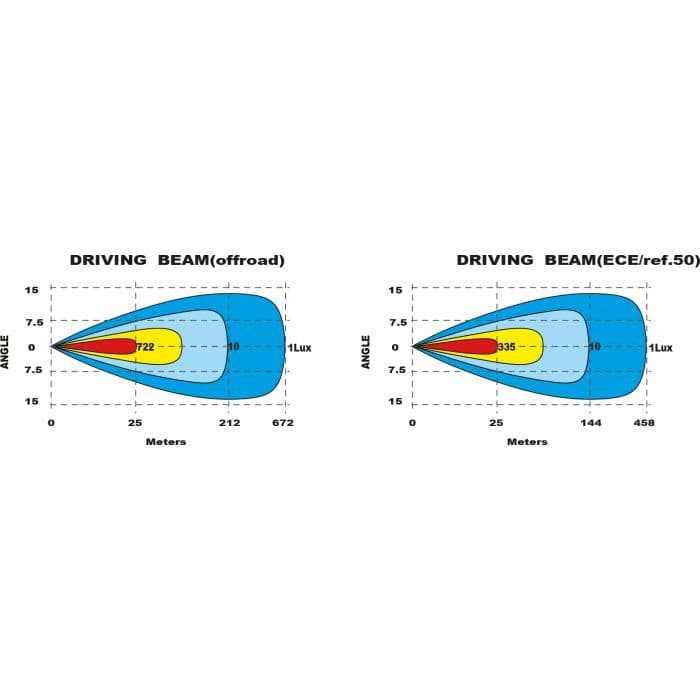

The beam pattern is Driving Beam (Drive), where all reflectors are computer-optimised to provide a beam pattern similar to combo. This beam pattern enhances and complements the vehicle's existing headlights and high beams.

For connection, the ramp is equipped with a 2-pin DTP connector for the high beam function and a 4-pin DT connector for strobe light and Position light. A suitable DTP relay set is available under item number 7801010. Ledson Connect provides a very simple connection, with the option of expanding the system with additional auxiliary lights or LED bars without complicated installations.

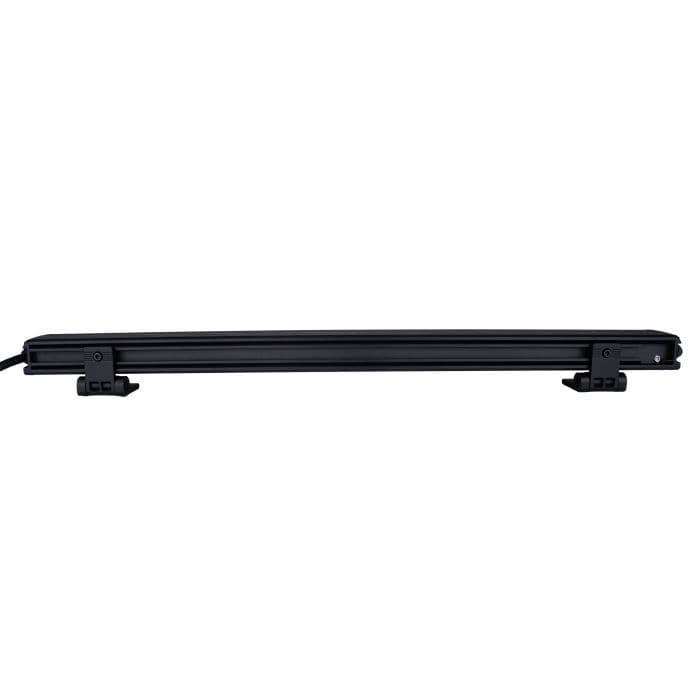

The delivery includes the Epix30⁺ powerboost 30" LED bar, bolts and screws for mounting on a suitable surface, mounting details for end mounting and mounting details for rear mounting, both standing and hanging. A 2-pin DTP connector for the spotlight function (matching cabling available separately) and a 4-pin DT connector for position lights and strobe lights are included. The loose cables for position lights and strobe lights do not require any external cabling. Installation instructions are included.


Flash patterns include:
Single flash synchronised 2.2 Hz (R65)
Single flash asynchronous 2.2 Hz
Triple flash synchronised 1.1 Hz
Triple flash asynchronous 1.1 Hz
Quadruple flash synchronised 1.25 Hz
Quadruple flash asynchronous 1.25 Hz
Combination of one long and five short flashes synchronised 0.83 Hz
Combination of one long and five short asynchronous 0.83 Hz
Flash series synchronised 10 Hz and flash series asynchronous 10 Hz.

Please note that the DT connector must not be cut, as this increases the risk of moisture damage and will invalidate the warranty.
