Description

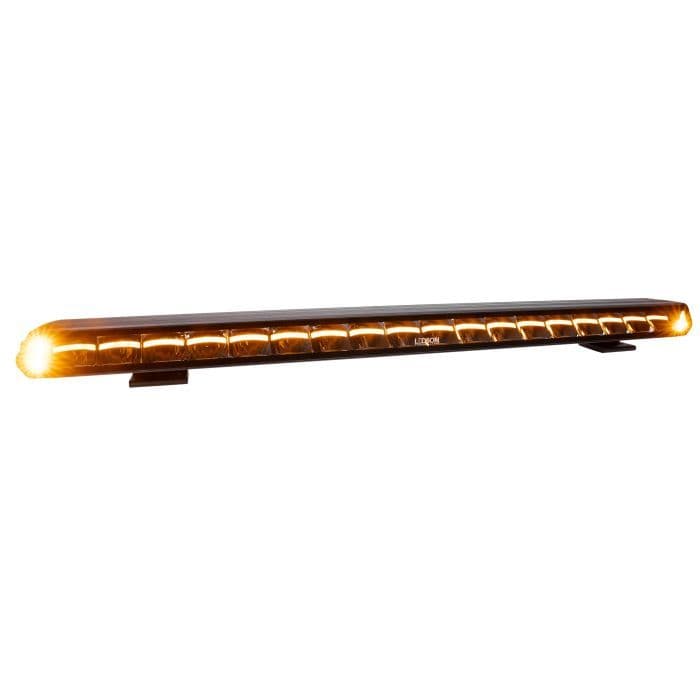

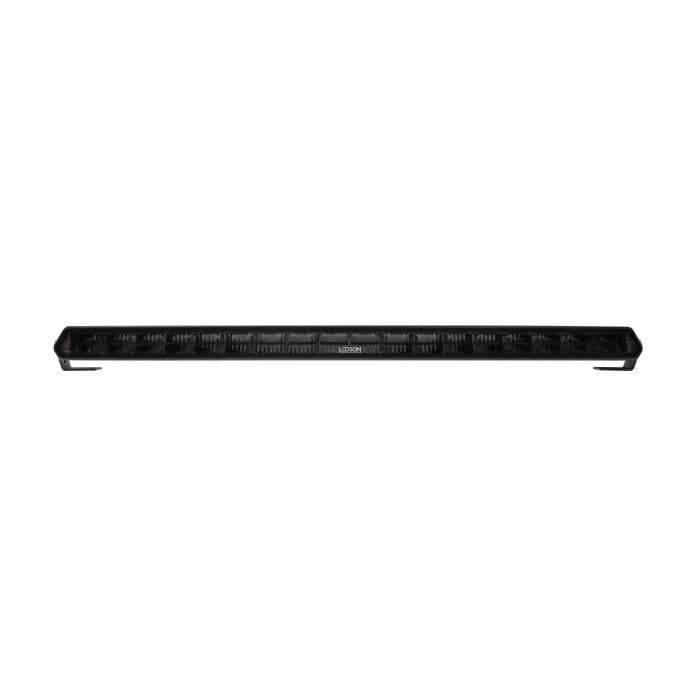

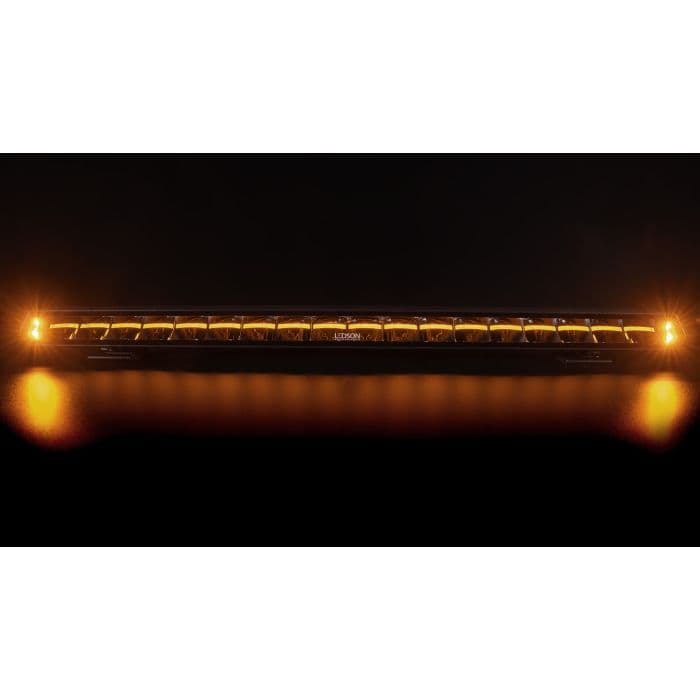

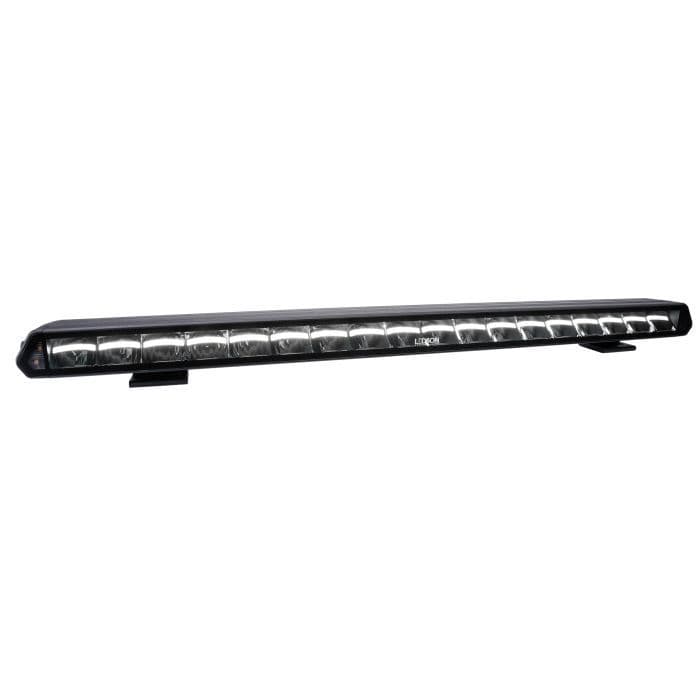

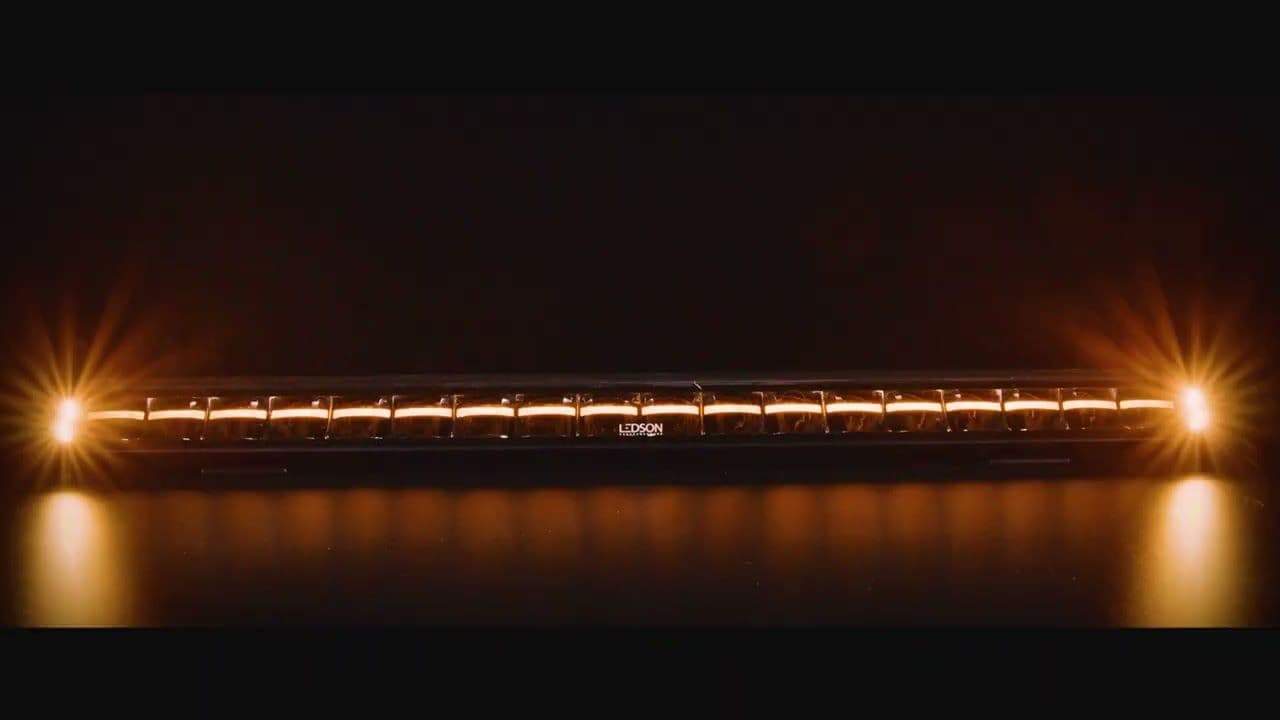

Ledson EPIX30+ Strobe with flashing light and position light – LED light bar package for Volvo FH, model years 2014–2020.
A specially designed mounting kit enables quick and cost-effective installation and flexible placement of the LED light bar. The light bar can be mounted concealed behind the front grille or visible through the grille, either at the upper or lower grille.

Contents:
30" EPIX30+ Strobe LED light bar (item number 334915189)

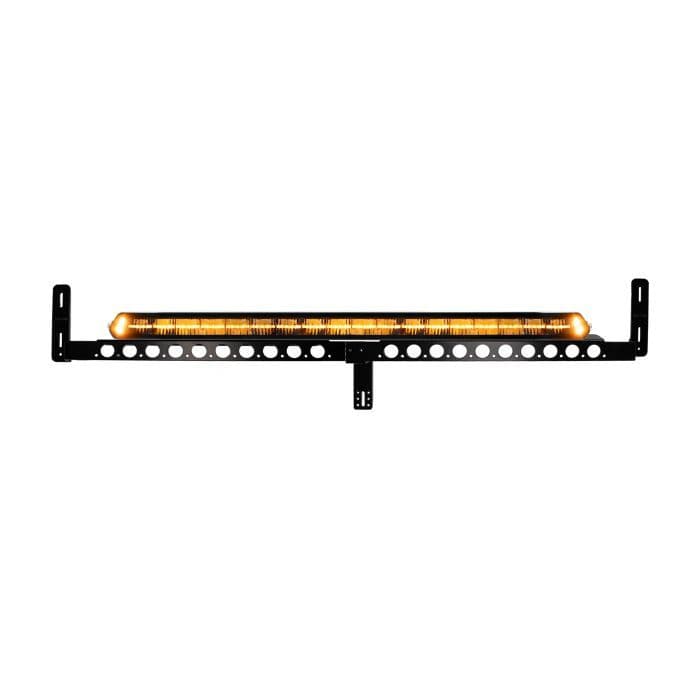

Mounting Bracket

The EPIX30+ stands out with its unique, sporty design tailored for modern vehicles. A unique feature is the integrated position light in the reflector, which gives the light bar a distinctive character. The dynamic ignition creates an impressive start-up with light sweeping from one side to the other before full ignition occurs.
The ramp's performance is optimised in E-approved mode, with the option of Powerboost for use off public roads.
Approved R65 flashing lights ensure visibility when working on the road and contribute to increased safety regardless of weather conditions or time of day.
Smartly designed brackets allow flexible mounting on selected surfaces of the vehicle.
The design is exclusively developed by Ledson and harmonises with the modern aesthetics of today's vehicles, enhancing the overall impression.

Light pattern:

Driving Beam (Drive)
The reflectors are computer-optimised to mimic and enhance the vehicle's existing headlights, with a light pattern similar to a combo.

Flash pattern:
Single flash synchronised: 2.2 Hz (R65)
Single flash asynchronous: 2.2 Hz
Triple flash synchronised: 1.1 Hz
Triple flash asynchronous: 1.1 Hz
Quadruple flash synchronised: 1.25 Hz
Quadruple flash asynchronous: 1.25 Hz
Combination of one long and five short flashes, synchronised: 0.83 Hz
Combination of one long and five short flashes, asynchronous: 0.83 Hz
Flash series synchronised: 10 Hz
Flash series asynchronous: 10 Hz

Important to note:
The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.

Other Information

Features and technical data:

• R65 approved strobe lights with 10 different strobe patterns
• Position light with unique dynamic ignition, integrated in the reflector
• Selectable position light in xenon white or yellow/orange
• Driving Beam light pattern (wide and oblong)
• E-marked R112, R7, R10 (EMC rated)
• Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
• 23,200 lumens (theoretical), 16,300 lumens (actual)
• Color temperature 5000K (Neutral White)
• 270 W (18 x 15 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management

Dimensions & weight of the LED bar (excl mounting):

• Width: 740 mm
• Height: 43 mm
• Depth: 61 mm
• Weight: 2.25 kg
