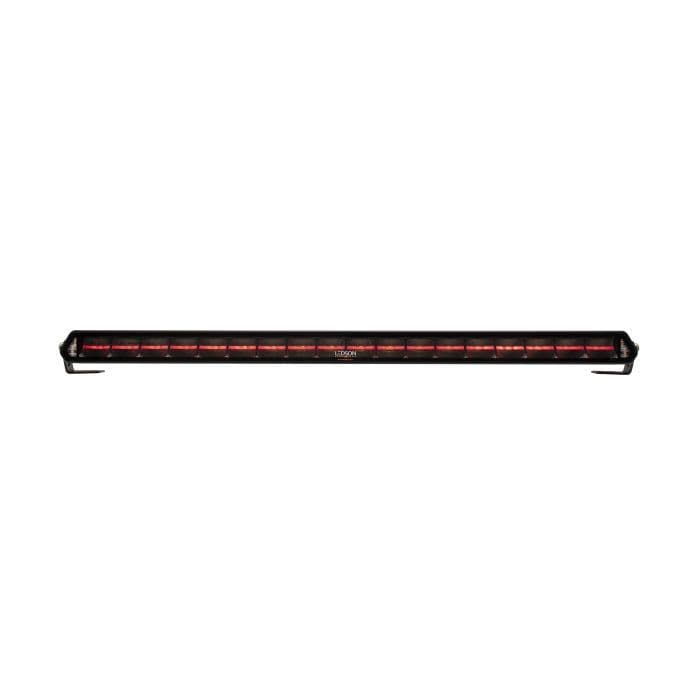

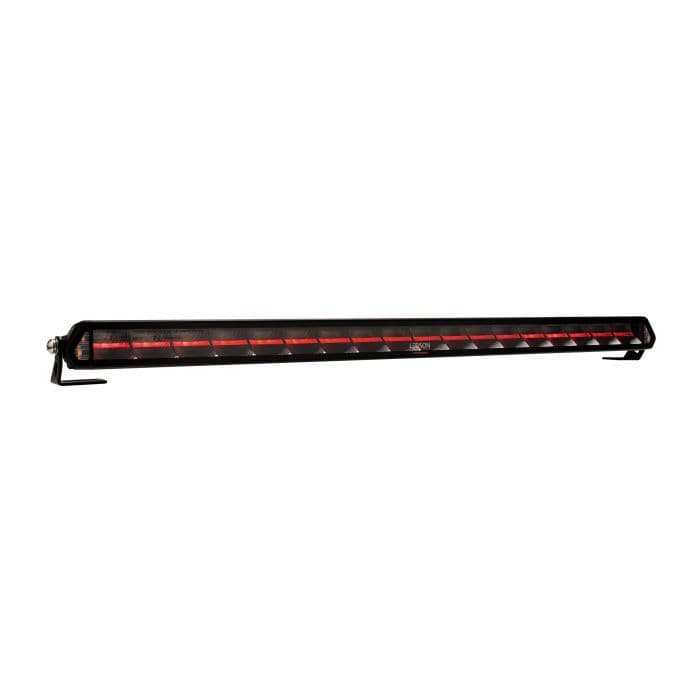

Treat yourself to the best. The Epix+ series stands out from the crowd with a uniquely designed, sporty aesthetic, developed with today's modern vehicles in mind. EPIX30+ Work strobe is a work bar with approved R65 strobe lights that ensure your visibility. Choose between red or yellow-orange position light.

EPIX30+ Work Strobe is the work light bar that offers a modern look and has the performance to meet all conditions. With its impressive 270W, this bar provides a work light with a range of 167m at 1 lux and a wide 120° wide light pattern, giving you maximum light coverage over a large area. With 16,300 actual lumens and a color temperature of 5000K, it provides strong and natural illumination that facilitates work in all conditions. Ledsons smart brackets ensure mounting practically anywhere and however you want on the vehicle.

Position Lights

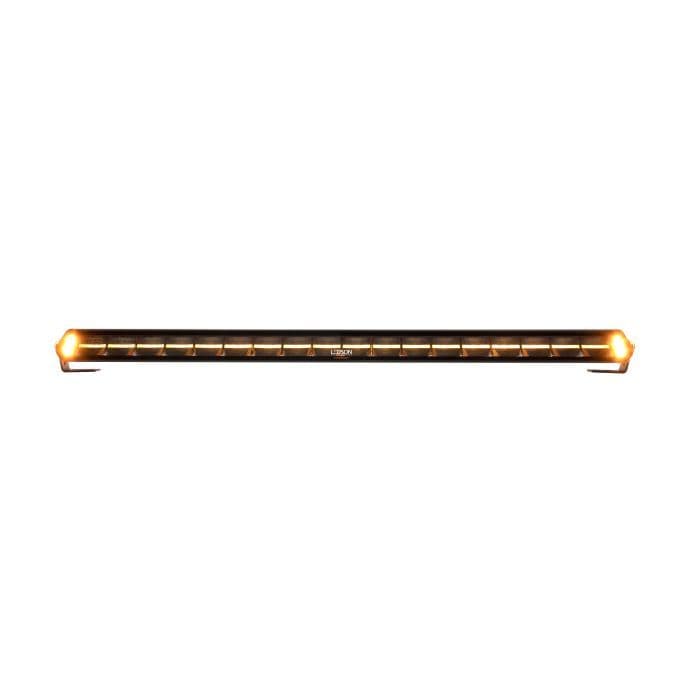

The bar features Epix series specially designed reflectors with dynamic ignition of the position lights. The color of the position lights is also selectable between yellow/orange and red, which is also approved for road use.

Strobe Lights

The Epix30+ Work Strobe is equipped with 10 different strobe patterns, one of which is ECE R65-approved.

Features and technical data:

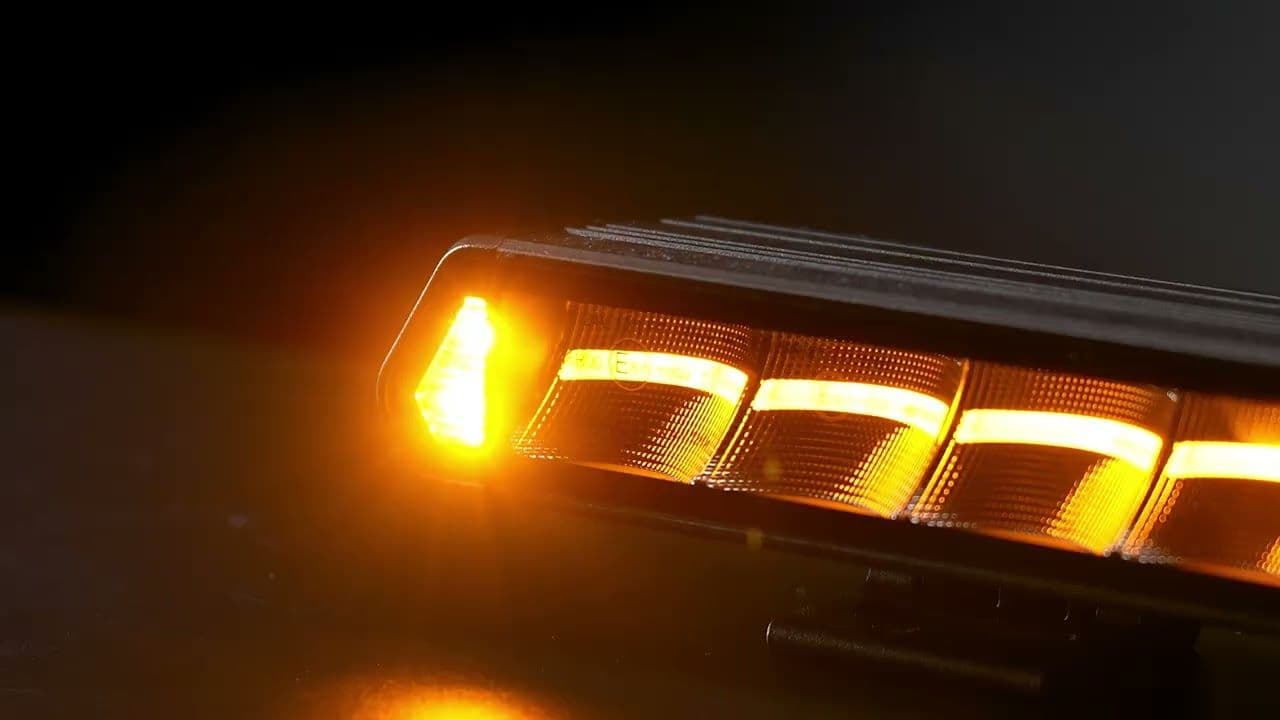

• Position light with unique dynamic ignition, integrated in the reflector
• Selectable position light in red or yellow/orange
• 120° wide light pattern
• Range: 167 m (1 lux)
• 23'200 lumens (theoretical), 16'300 lumens (actual)
• Color temperature 5000K (white)
• 270 W (18 x 15 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management
• DT connector (supplied)
• 16 A at 12V and 7,8 A at 24V
• E-marked ECE R148 (R1, SM1), R65 och R10 (EMC rated)

Supplied:

• Epix30+ Work Strobe LED bar
• Bolts and screws to attach the bar to appropriate surface
• Smart mounting details
• DT cable 4-pin + DTP cable 2-pin
• Installation instructions

Dimensions & weight (excl mounting):

• Width: 740 mm
• Height: 43 mm
• Depth: 61 mm
• Weight: 2 kg

Flash patterns:

1. Single flash synchronization: 2.2HZ
2. Single flash asynchronous: 2.2HZ
3. Triple flash synchronization: 1.1HZ
4. Triple flash asynchronous: 1.1HZ
5. Quadruple flash synchronization: 1.25HZ
6. Quadruple flash asynchronous: 1.25HZ
7. Combination of one long and five short synchronization: 0.83HZ
8. Combination of one long and five short asynchronous: 0.83HZ
9. Burst flash synchronization: 10HZ
10. Burst flash asynchronous: 10HZ

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.

16 A at 12 V and 7.8 A at 24 V
