The Epix+ Prime series stands out with its own sporty design that is adapted for today's modern vehicles. Epix5+ Prime Strobe is an auxiliary light and work light with selectable yellow/orange or white Position light and approved R65 strobe light that ensures high visibility in traffic and at work. The unique position light is fully integrated into the reflector.

The Epix5+ Prime Strobe is a compact LED bar, just under 13 cm wide, which combines modern aesthetics with performance for demanding situations. The 30 W power provides a range of 225 m. The light bar is approved as an auxiliary light in accordance with ECE R112. With 1700 actual lumen, 2450 theoretical lumen and a colour temperature of 5000K, it provides a strong, neutral white light that improves visibility in varying conditions. Specially developed, smart mounts allow flexible mounting on the vehicle, both in terms of placement and orientation.

Position light

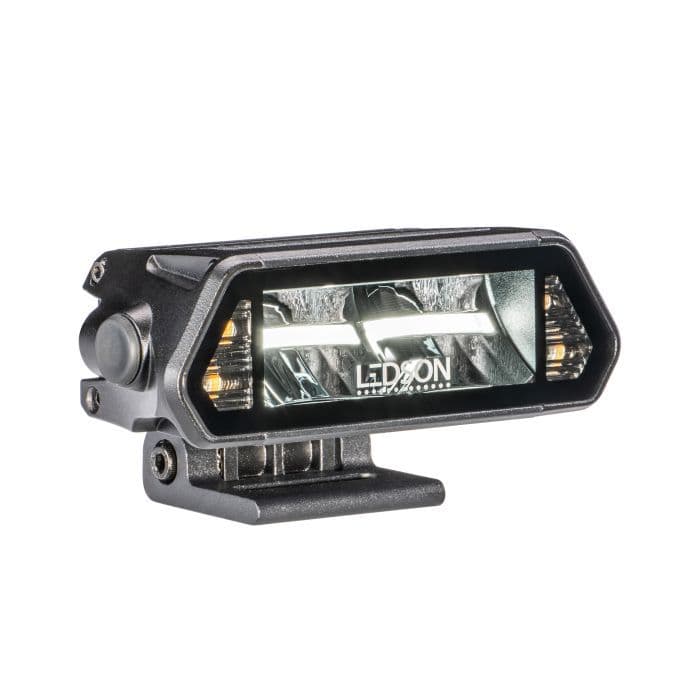

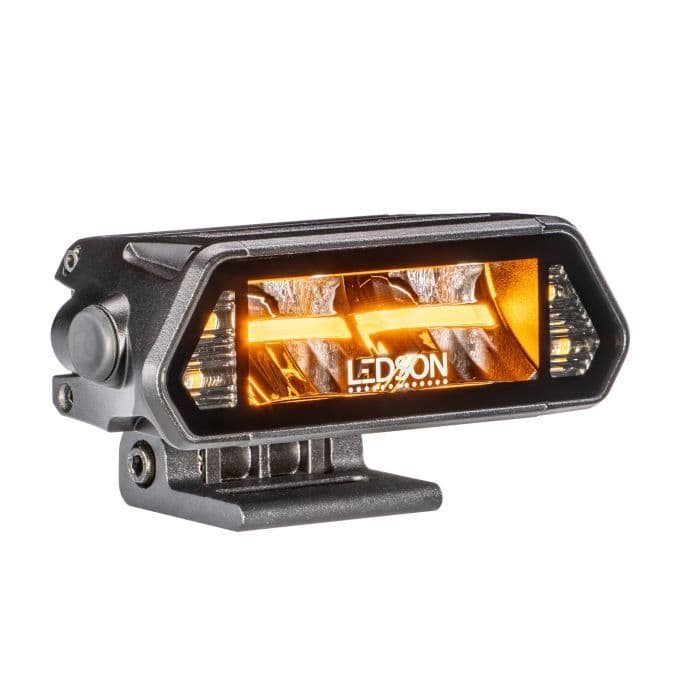

The LED bar has the Epix series' specially designed reflectors, where the position light is fully integrated into the reflector. The colour of the position light can be set to white or yellow/orange.

Strobe light

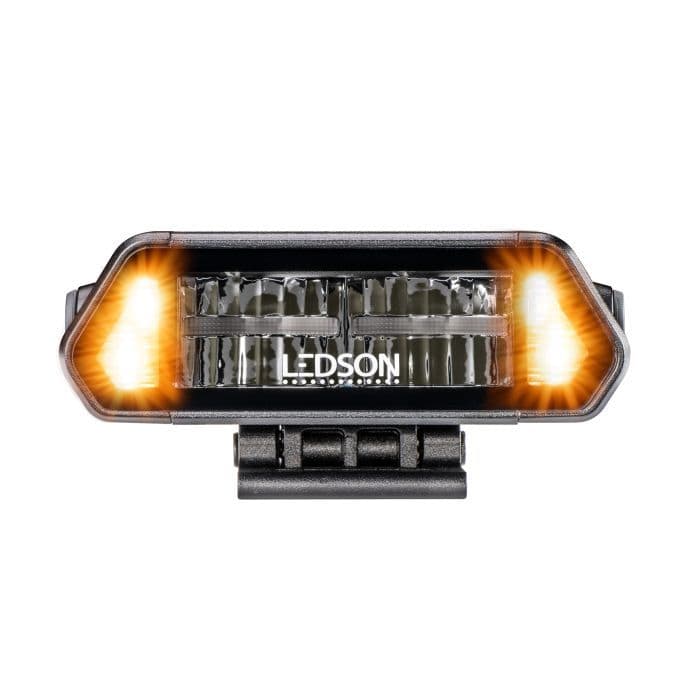

The Epix5+ Prime Strobe is equipped with 10 different strobe light patterns, one of which is ECE R65 approved. By connecting two units, both synchronous and asynchronous strobe light patterns can be achieved between the bars. The product can be used as work lighting or Auxiliary light; when the lighting is switched on, the strobe is switched off, and when the lighting is then switched off, the last selected flash pattern is automatically activated.

What more is needed?
DT-relay: We strongly recommend using our cable harness with 1 x 6-pin DT (part no. 7801006). Ledson Connect provides a super easy connection while being interconnectable if there is a future desire to easily expand with additional lights or bars.
If you want to reduce the energy consumption of your Epix LED-bar, you can easily install our E-screw (part no. 334915020). By mounting this screw on the back of the LED-bar, it enters eco-mode, reducing the brightness and energy consumption.


Supplied:

• Epix5+ Strobe LED bar
• Bolts and screws to attach the bar to appropriate surface
• Smart mounting details
• DT cable 6-pin (you will also need a DT harness)
• Installation instructions

Flash patterns:

1. Single flash synchronization: 2.2HZ
2. Single flash asynchronous: 2.2HZ (when using 2 LED bars)
3. Triple flash synchronization: 1.1HZ
4. Triple flash asynchronous: 1.1HZ (when using 2 LED bars)
5. Quadruple flash synchronization: 1.25HZ
6. Quadruple flash asynchronous: 1.25HZ (when using 2 LED bars)
7. Combination of one long and five short synchronization: 0.83HZ
8. Combination of one long and five short asynchronous: 0.83HZ (when using 2 LED bars)
9. Burst flash synchronization: 10HZ
10. Burst flash asynchronous: 10HZ (when using 2 LED bars)

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.
