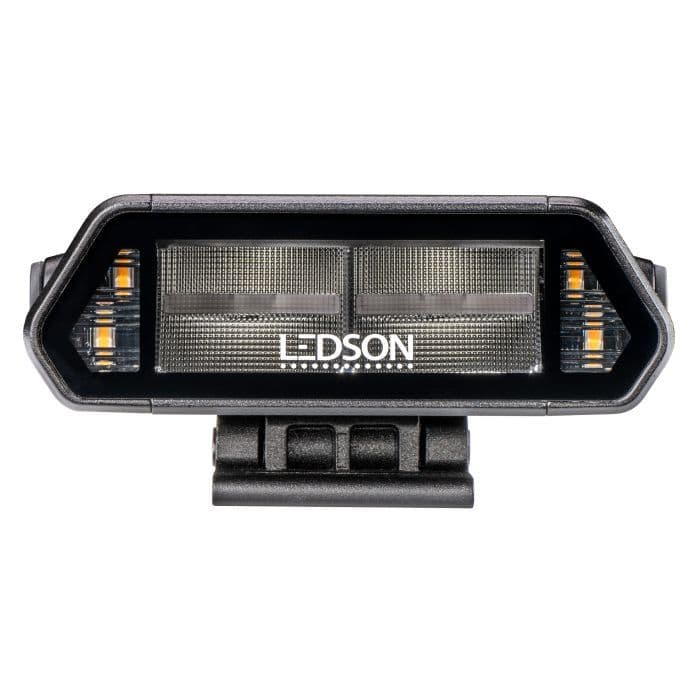

The Epix+ series stands out with its unique, sporty design developed with today's modern vehicles in mind. The EPIX5+ Work Strobe is a work light bar with selectable red or yellow/orange position lights and approved R65 strobe lights that ensure high visibility. The unique position light is fully integrated into the reflector. The bar is also approved as both a reversing light and rear light in accordance with ECE R23 and ECE R148.

EPIX5+ Work Strobe is a work light bar that combines modern aesthetics with performance designed for demanding situations. The 30 W output provides a work light with a range of 59 m at 1 lux and a wide 120° beam pattern, providing a very large illuminated work area. With 1700 actual lumen and a colour temperature of 5000 K, it creates a strong, neutral white light that facilitates work in varying conditions. Proprietary mounts allow for flexible mounting and enable placement in virtually any position on the vehicle.

Position light

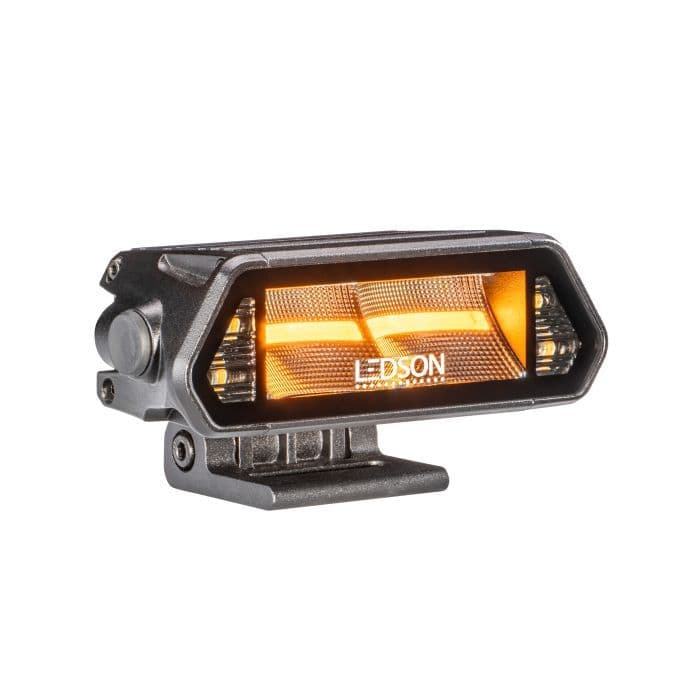

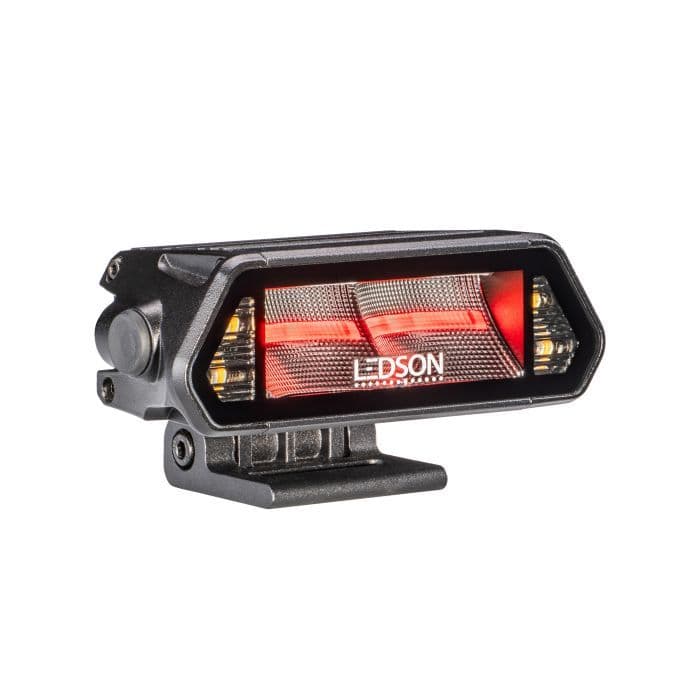

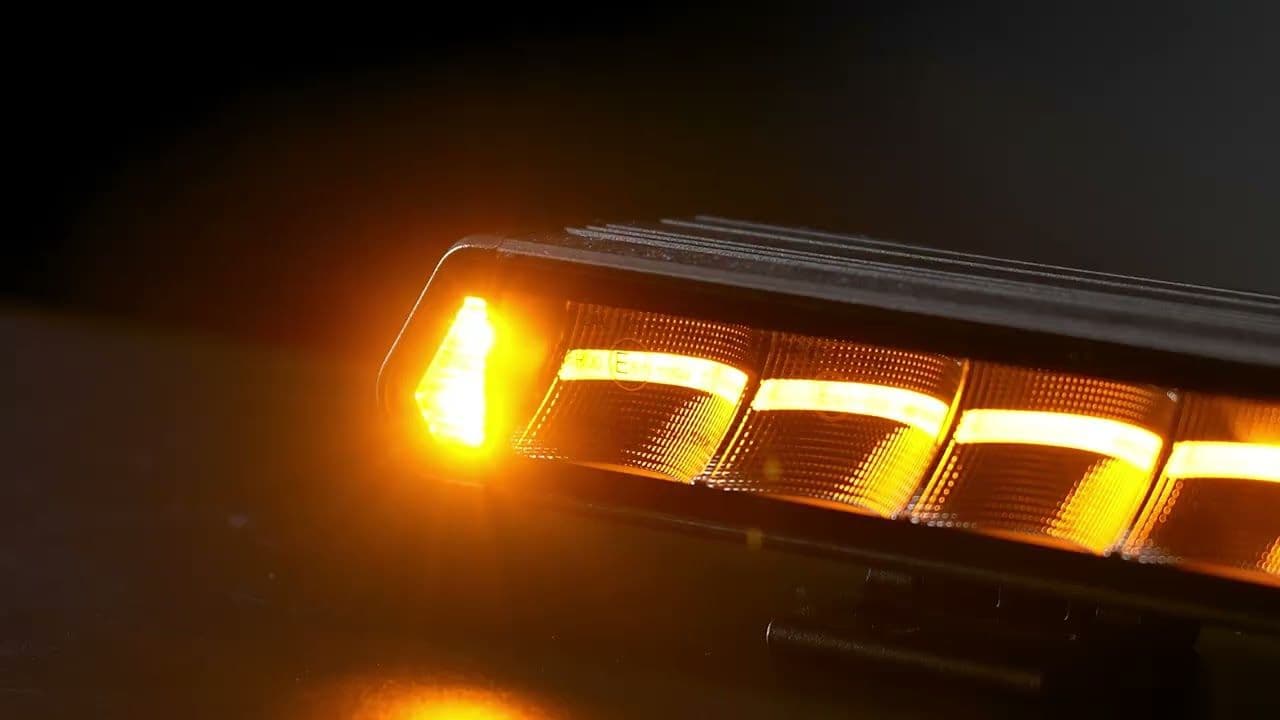

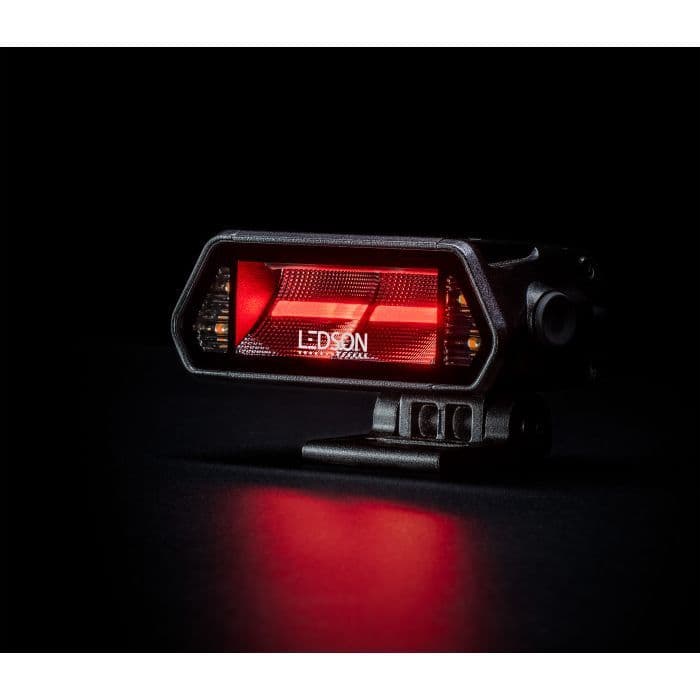

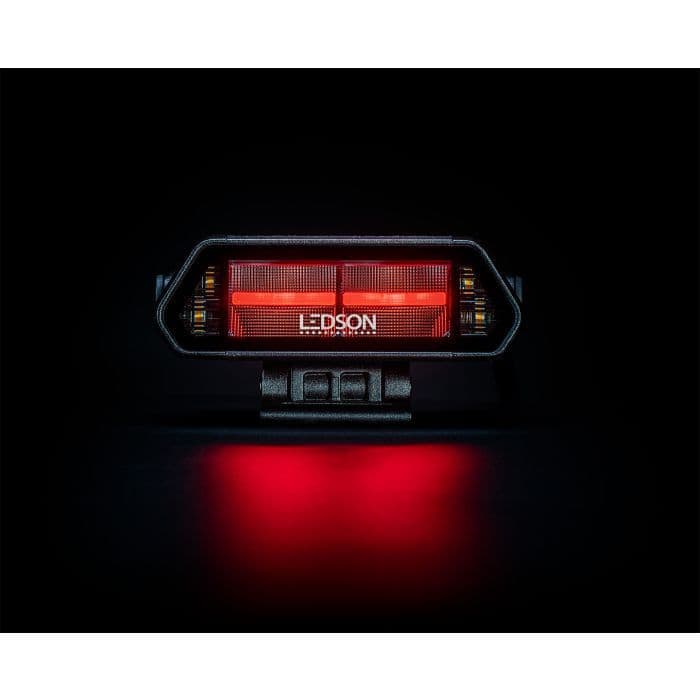

The ramp is equipped with the Epix series' specially designed reflectors, where the position light is fully integrated into the reflector. The colour of the position light can be selected between yellow/orange and red, both of which are approved.

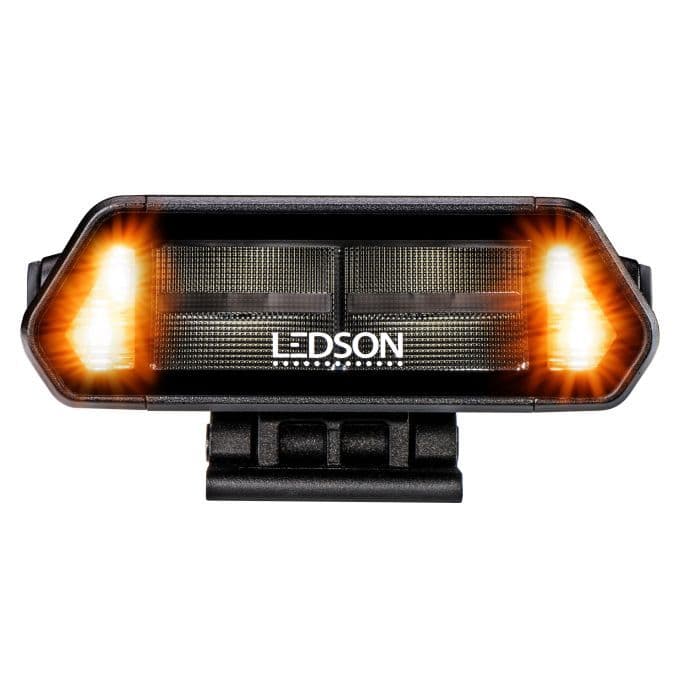

Strobe light
The EPIX5+ Work Strobe has 10 different strobe light patterns, one of which is ECE R65 approved. By connecting two units, both synchronous and asynchronous strobe light patterns can be achieved between the ramps. The product can be used as work lighting or reversing lights; when the work lighting is activated, the strobe is switched off and then automatically starts with the last selected flash pattern when the work lighting is switched off again.

DT relay set: The use of a cable set with 1 x 6-pin DT connector (item no. 7801006) is strongly recommended. Ledson Connect greatly simplifies installation and also enables future connection if additional auxiliary lights or ramps are to be added.
To reduce energy consumption on the Epix Work Series work ramp, an E-screw (item no. 334915020) can be installed. Installing this screw on the rear of the ramp activates eco mode, which reduces the brightness and thus reduces energy consumption.


The package includes the EPIX5+ Work Strobe LED bar, bolts and screws for mounting on a suitable surface, mounting details for end mounting and for rear mounting in a standing or hanging design. A 6-pin DT connector is included, but requires a separate 6-pin cable set, which is linked, and installation instructions.


Flash patterns
Single flash synchronised: 2.2 Hz
Single flash asynchronous: 2.2 Hz (when using 2 ramps)
Triple flash synchronised: 1.1 Hz
Triple flash asynchronous: 1.1 Hz (when using 2 ramps)
Quadruple flash synchronised: 1.25 Hz
Quadruple flash asynchronous: 1.25 Hz (when using 2 ramps)
Combination (one long and five short) synchronised: 0.83 Hz
Combination (one long and five short) asynchronous: 0.83 Hz (when using 2 ramps)
Flash series synchronised: 10 Hz
Flash series asynchronous: 10 Hz (when using 2 ramps)

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.
