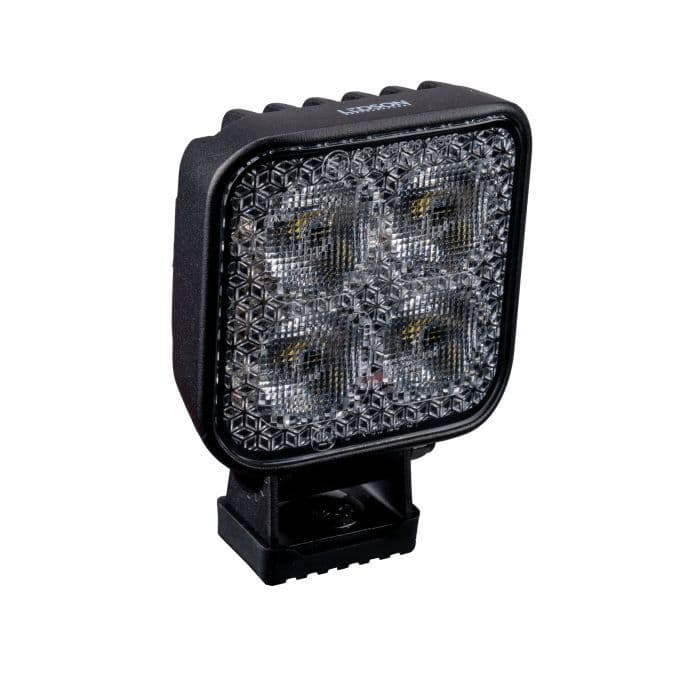

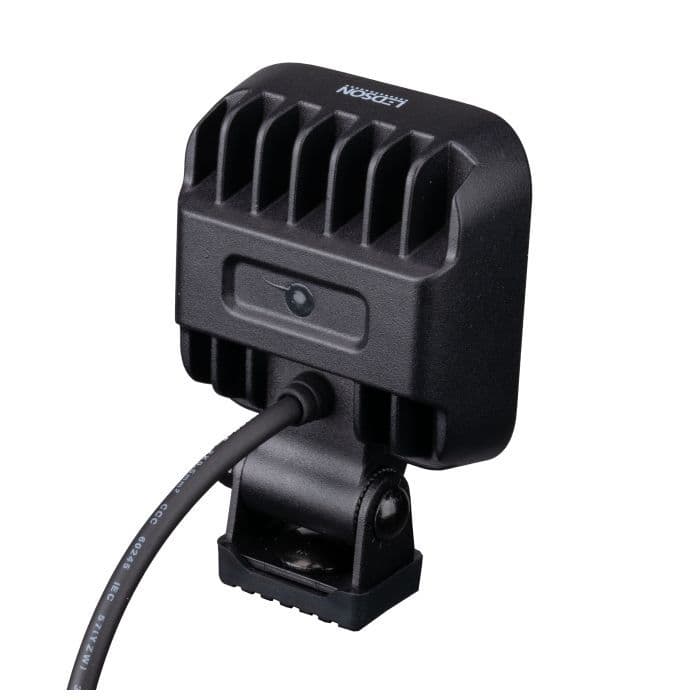

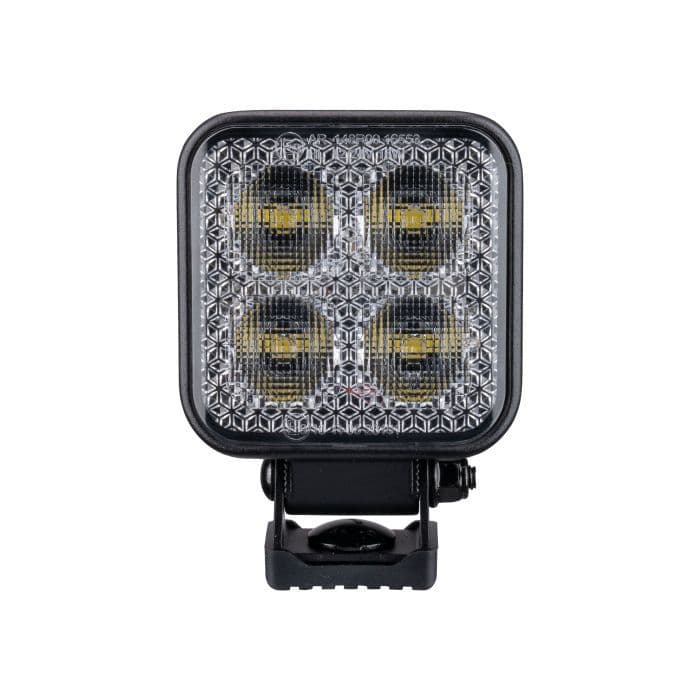

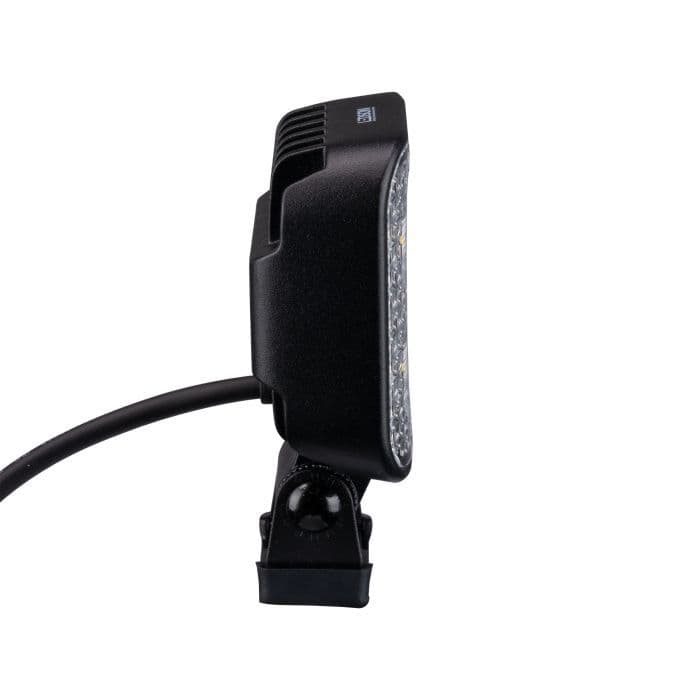

The work light Lumina SQ4 is perfect for those who need a sleek, high-performance light in a smaller size. This work light is ECE R148 approved as reverse light, and delivers 1758 actual lumens with a 5000K color temperature, ensuring clear and bright illumination. With a 1 lux brightness at 47 meters and a compact 34 mm thickness, SQ4 provides ample coverage for its size, making it ideal for both tight spaces and everyday tasks. Discover the ideal blend of compactness and effectiveness with Lumina SQ4.

Specifications:

• Range: 47 meters (1 lux), 94 meters (0.25 lux)
• Approved as reverse light R148 (R23)
• 90° flood beam with wide coverage
• Lumen: 2929 (theoretical), 1758 (actual)
• Neutral white light (5000K)
• IP67, IP69K (water and dust resistant)
• CISPR25 class 3, ECE R10 (EMC compliant)
• Temperature control system
• Voltage: 10-30V
• 1,78A at 12V and 0,84A at 24V
• 12 Osram LEDs (total 18W)
• Aluminum housing and polycarbonate lens
• Stainless steel mounting bracket included

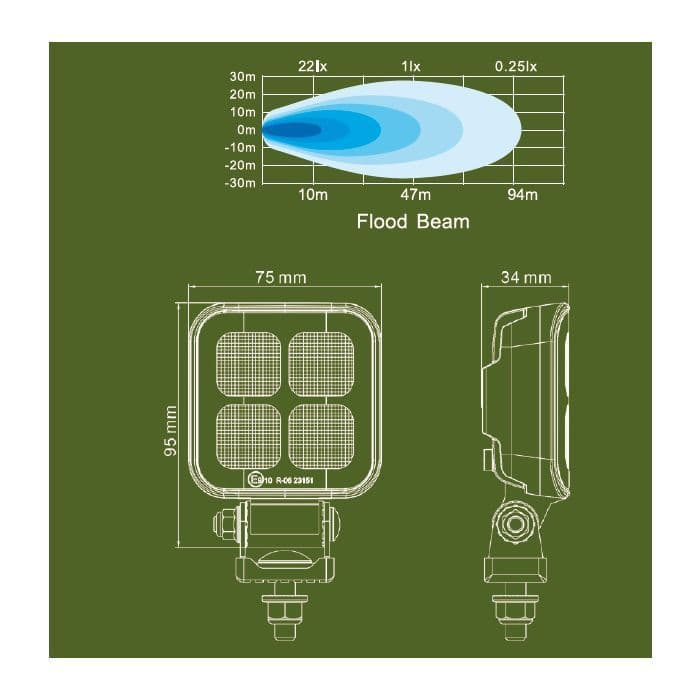

Dimensions:

• Width: 75 mm
• Height: 95 mm
• Depth: 34 mm
• 50 cm cable with 2-pole DT connector

Note: The DT connector should not be cut, as this increases the risk of moisture damage and voids the warranty. A DT connector (male) with a splice is included with the product.
