OptoLine NGR+ is a position light designed for recessed installation with flexible mounting. Thanks to its smart click brackets (and a 2 metre long cable with 54007231), it can easily be mounted in various locations. With its IP67 rating, OptoLine NGR+ can be installed low on the vehicle without any risk of water damage. Foam gasket is pre-mounted on the light to protect the paint. Works on both 12V and 24V (10-48V)

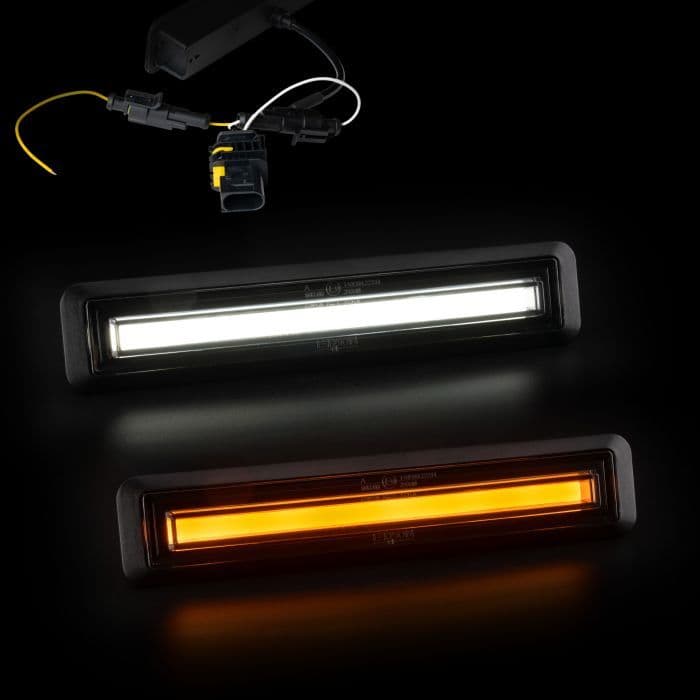

A template is included, making it very easy to cut out the desired placement. Choose between xenon white (ECE R148-approved) and yellow-orange light (thanks to a delayed return, yellow-orange can also be connected to turn signal or strobe light if desired, not E-approved). The colour of the light is selected via different cables.

OptoLine NGR+ fits panel/sheet thicknesses from 1 mm up to 5 mm and is available in two versions: with connectors for Scania Next Generation (item no. 54007131) and with a 2-meter cable (item no. 54007231).

Dimensions:

• Width: 183 mm
• Height: 37 mm
• Depth: 22 mm
• Depth (total): 34 mm
• Recessed dimensions: 179 mm x 28 mm

Cable colours:

• Black: Ground
• White: Xenon white light
• Yellow: Yellow-orange light (can also be connected to turn signal or strobe light, not E-approved)

Technical Information
