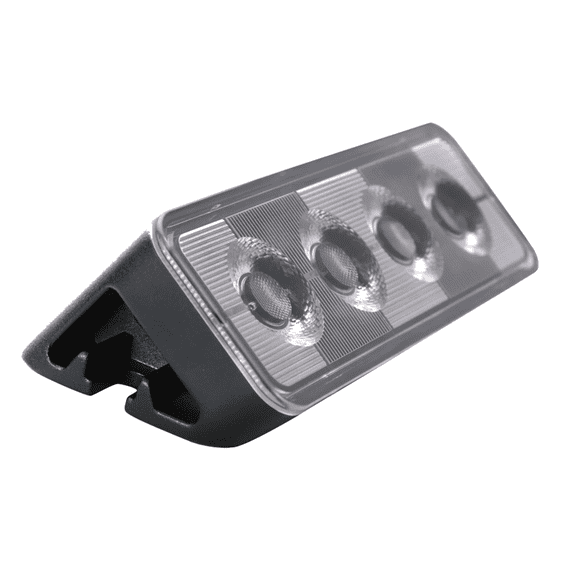

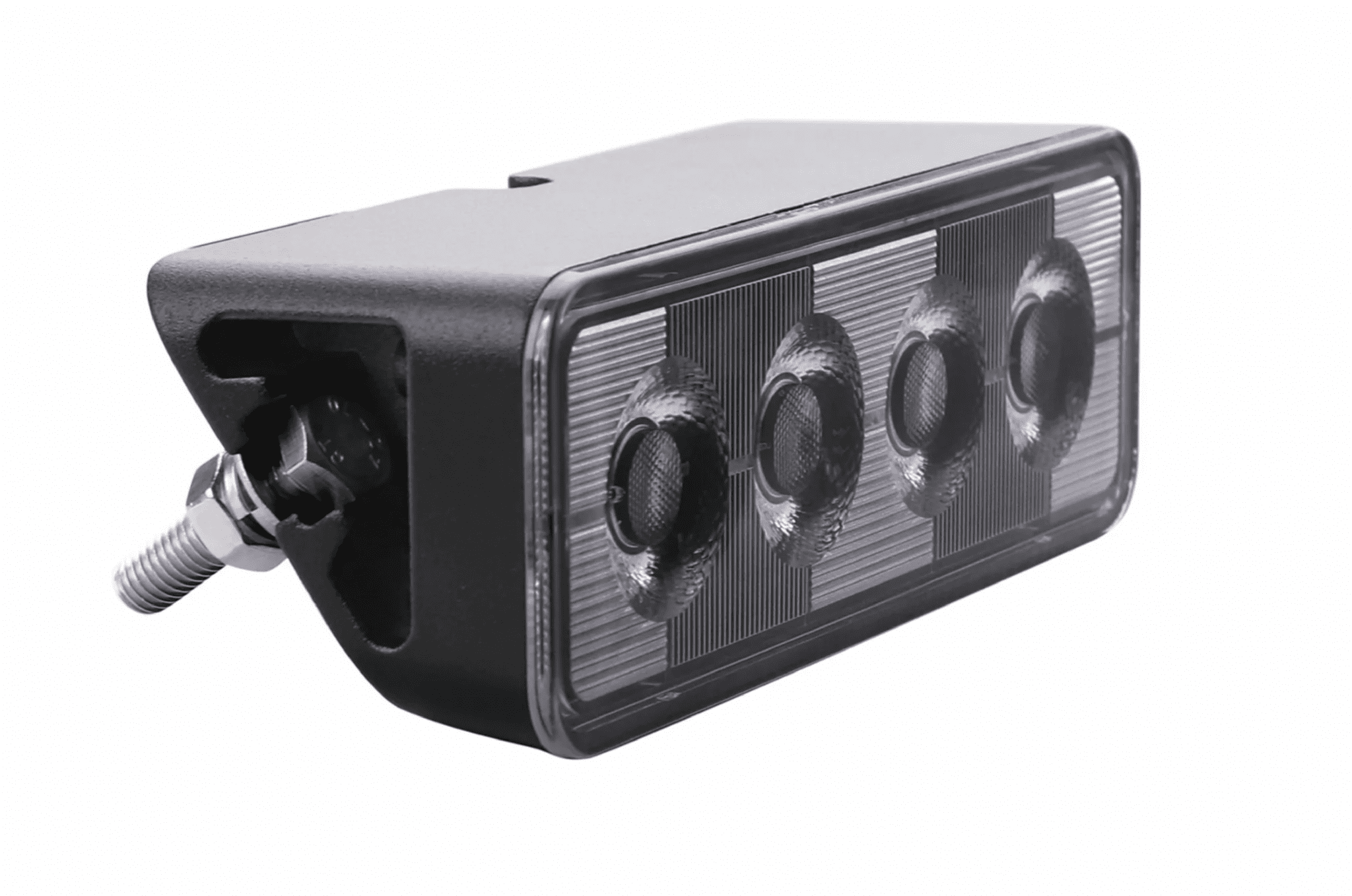

LEDSON Scene Light LED 24W (E Marked ECE R23, Flood)
LEDSON Scene Light LED 24W (E Marked ECE R23, Flood)
LEDSON Scene Light LED 24W (E Marked ECE R23, Flood)
LEDSON Scene Light LED 24W (E Marked ECE R23, Flood)
LEDSON Scene Light LED 24W (E Marked ECE R23, Flood)
View more images
LEDSON Scene Light LED 24W (E Marked ECE R23, Flood)

Product Description

Scene Light is designed for mounting on a vertical surface at a height to effectively illuminate a selected area. Typical areas of use are inside trailers or on the outside of caravans and motorhomes, as well as on the side of ambulances, fire engines and similar vehicles. The design provides a light spread of 70° with a brightness of 2200 actual lumens.

It can also be mounted on horizontal surfaces, such as floors or ceilings, to provide angled light upwards or downwards. Screw mounting is recommended for stable and secure attachment.

The delivery includes stainless steel screws and nuts (M6), double-sided adhesive tape and a 38.5 cm cable without a plug with loose cable ends.

Specifications

Brand
LEDSON
Product Code
33492417

Customer reviews

No reviews left yet
Write A Review

Scene Light is designed for mounting on a vertical surface at a height to effectively illuminate a selected area. Typical areas of use are inside trailers or on the outside of caravans and motorhomes, as well as on the side of ambulances, fire engines and similar vehicles. The design provides a light spread of 70° with a brightness of 2200 actual lumens.

It can also be mounted on horizontal surfaces, such as floors or ceilings, to provide angled light upwards or downwards. Screw mounting is recommended for stable and secure attachment.

The delivery includes stainless steel screws and nuts (M6), double-sided adhesive tape and a 38.5 cm cable without a plug with loose cable ends.

SKU 33492417

AREA OF USE In-/outside

BEAM PATTERN Flood/headlight

BRIGHTNESS, THEORETICAL (LUMEN) 2200

COLOR White

CURRENT 12V (A) 1.7

CURRENT 24V (A) 0.9

DELIEVERED AS pcs

DEPTH (MM) 56

E-MARKED ECE R10, ECE R23

EFFECT (THEORETICAL) (W) 24

FUNCTIONS (POSITIONS) Work light

HEIGHT (MM) 42

LIGHT SOURCE LED

MANUFACTURER Ledson

NUMBER OF DIODES 4

POSITION Interior lighting, Reverse light

SOCKET Direct cable connection

VOLTAGE 9-36 V

WARRANTY 36 months

TECHINCAL INFORMATION

Specifications:

  • 70° light scattering
  • 5700 K color temperature
  • ECE R10 and CISPR25 (very strong EMC protection)
  • ECE R23 (approved as reverse light)
  • 1 lux brightness at 59 meters
  • 2200 lumens (actual)
  • 4 x 6 W Lumiled (24 Watts total)
  • Electronic heat management
  • IP69K (waterproof, tested for hot water under pressure)
  • Voltage 9-36V

Dimensions & weight:

  • Width: 130 mm
  • Height: 42 mm
  • Depth: 56 mm
  • Width between screw holes (CC): 113 mm (35° angle) or 137 mm (48° angle)
  • Cable length: 38,5 cm
  • Weight: 237 g
