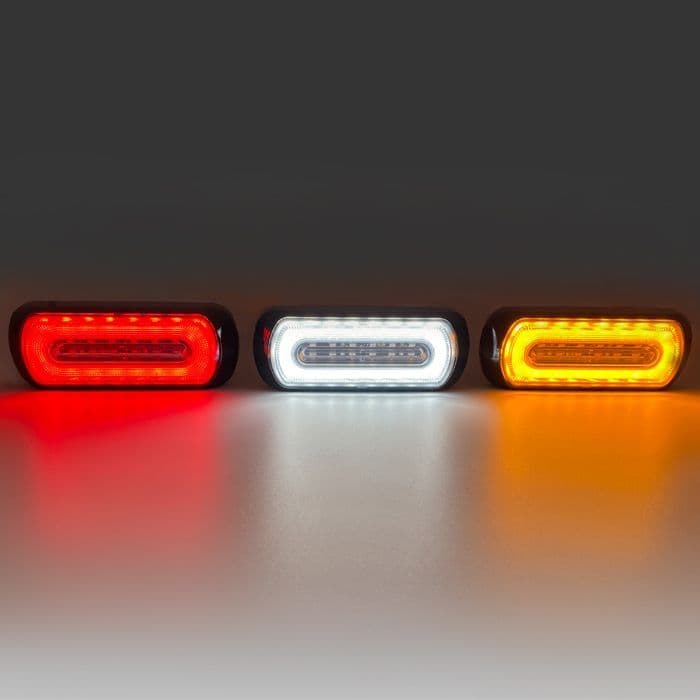

HL Halo Ring:
Multi Voltage input 12-24VDC.
Lens colour: Clear.
Housing colour: Black.
Fuse rating: 2A.
LED: 6x Centre Strobe Warning LED's, 18x Halo Ring Marker LED's.
Max Current: 1.35A@12VDC / 0.75A@24VDC.
Max Wattage: 18W.
Mount: Horizontal.
21 Flash Patterns.
Sync up to 14 lights in 2 separate groups.
​​Wire: Red - Positive (High intensity strobe light).
Black - Negative.
​ Yellow - Flash pattern selection & sync (apply to black for next flash pattern).
Grey - Positive (Marker Halo Ring)
​ White - Low intensity strobe light.
Strobe Colour: Amber.
Marker Ring Colour: Amber (ECE R6), Red (ECE R7) or White (ECE R23).

FEATURES:
Up to 100,000 hours rated Long-Life LED​.
Independent control for strobe and marker light (separate power cables).
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
​Weatherproof and vibration resistant.
Aluminium base for excellent heat dissipation.
Reverse polarity protection.
UV resistant lens.
Warranty: 3 Year.

APPROVALS:
ECE EMC R10, ECE R65 Class 1, ECE R148 (R6/R7/R23), E-Marked, CE, UKCA, IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.
​
DIMENSIONS:
W:132mm x H:51mm x D:19mm.
Mounting hole centres: 120mm
